Uniball Bearing Fabrication Kit - .5" to 1.5" Bore
Pickup available at 32 West Mayflower Avenue
Usually ready in 24 hours

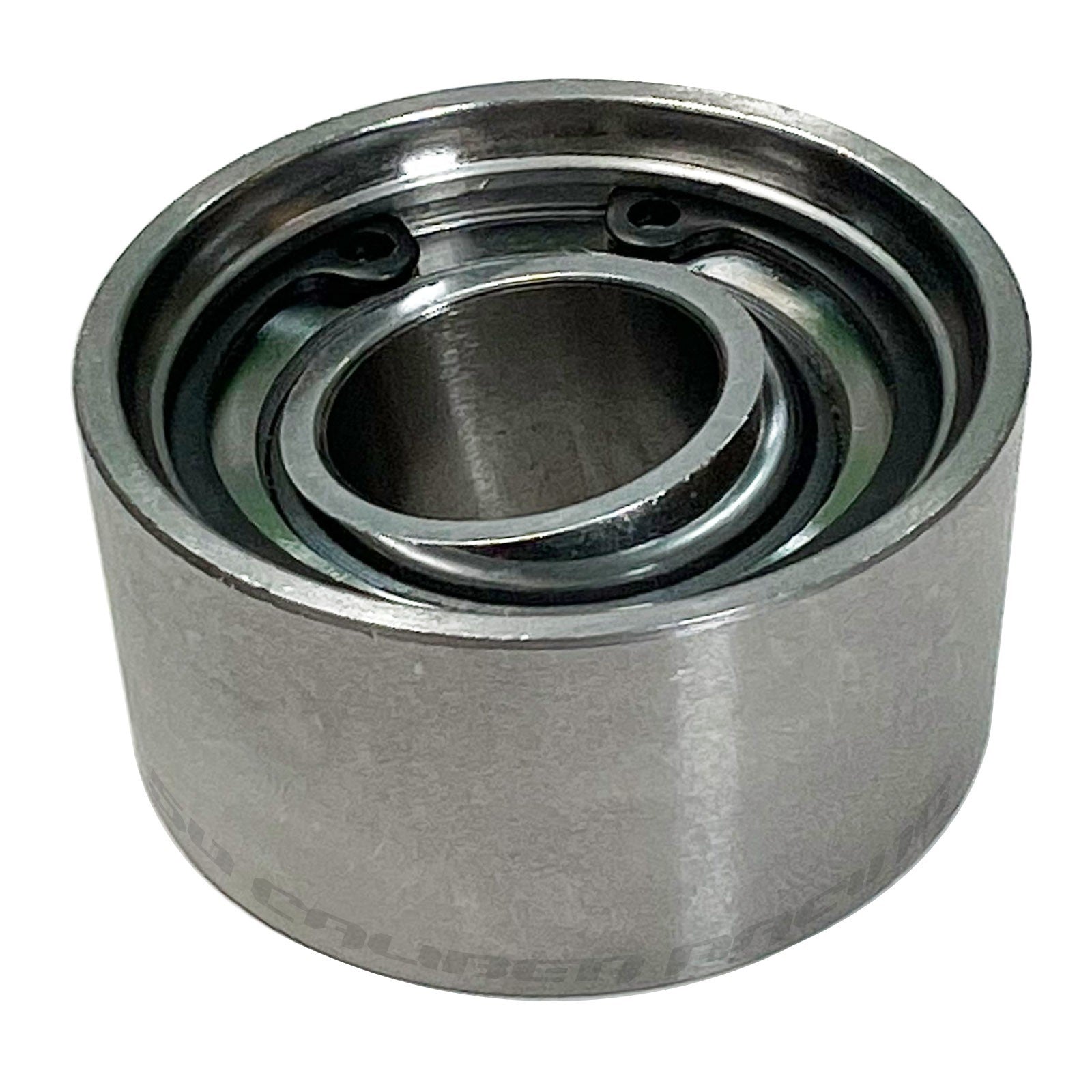

50 Caliber Racing Heavy Duty Chromoly Uniball Spherical Bearing Fabrication Kit

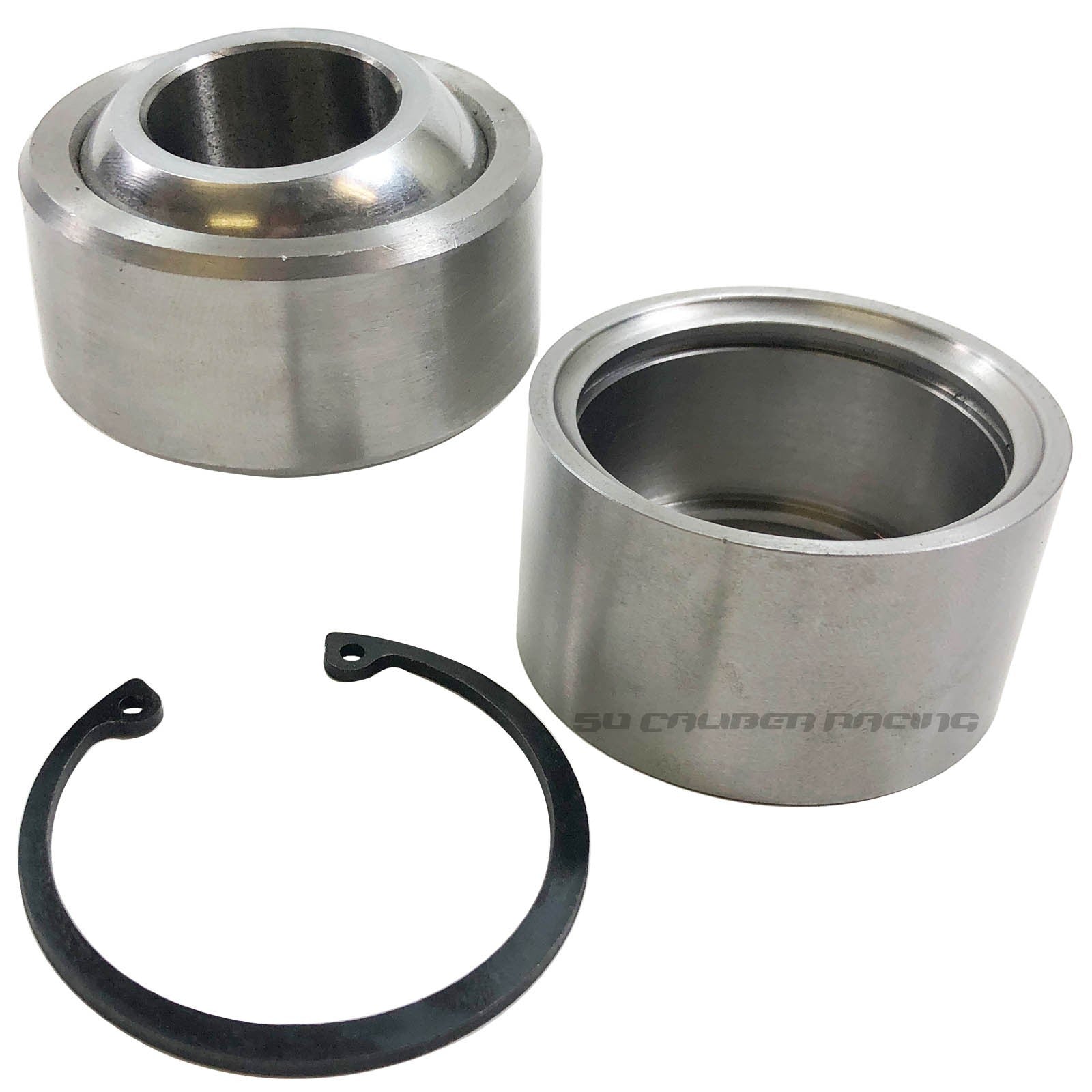

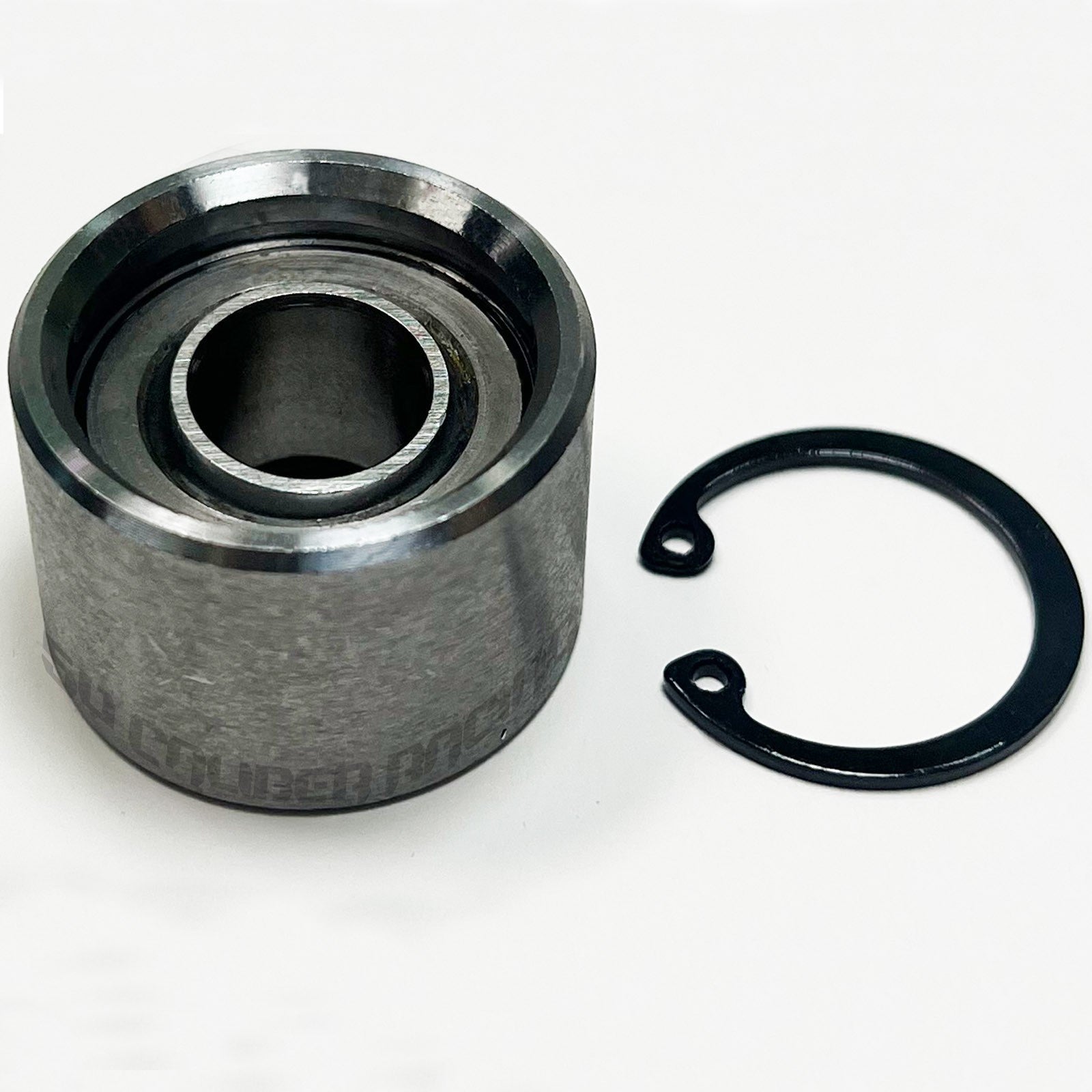

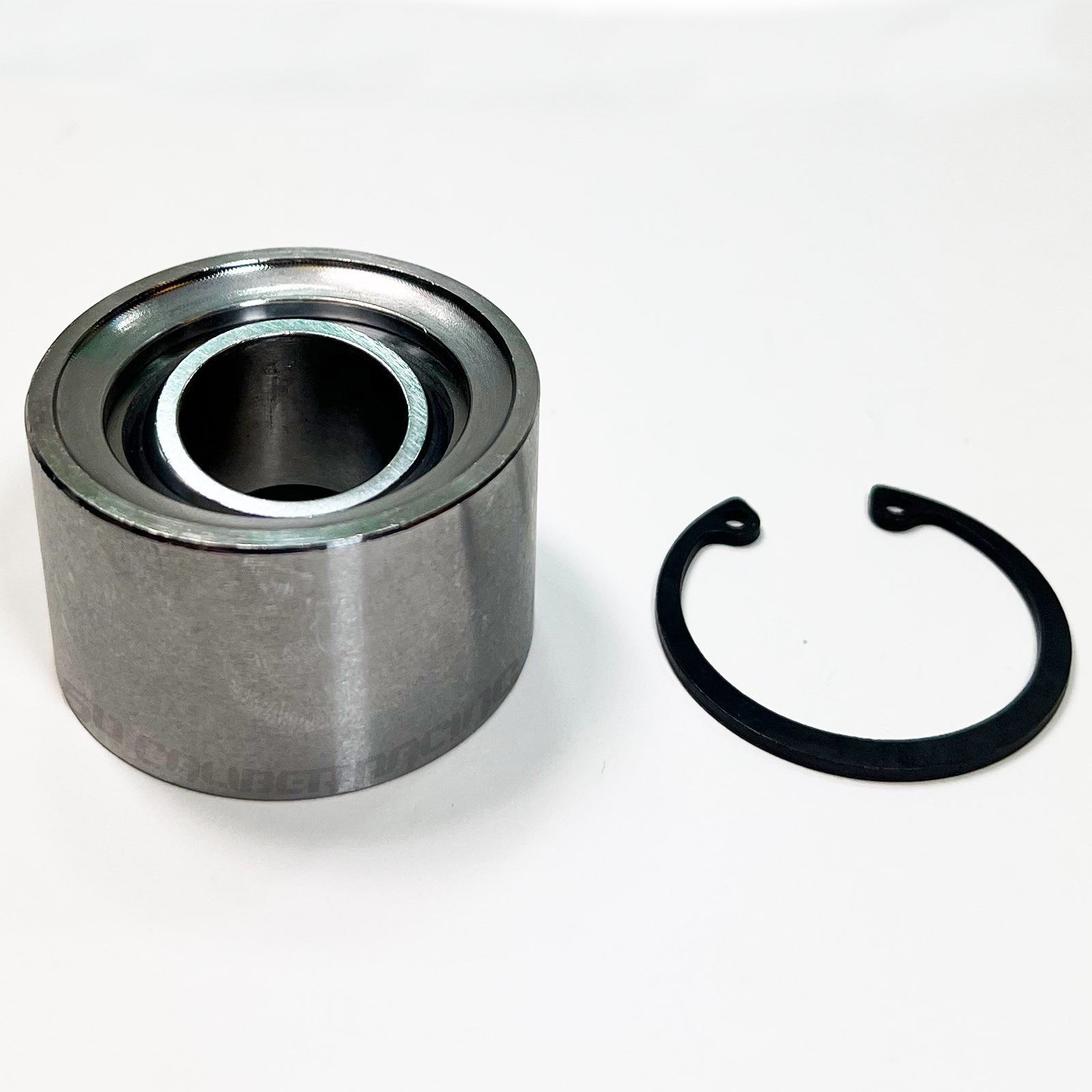

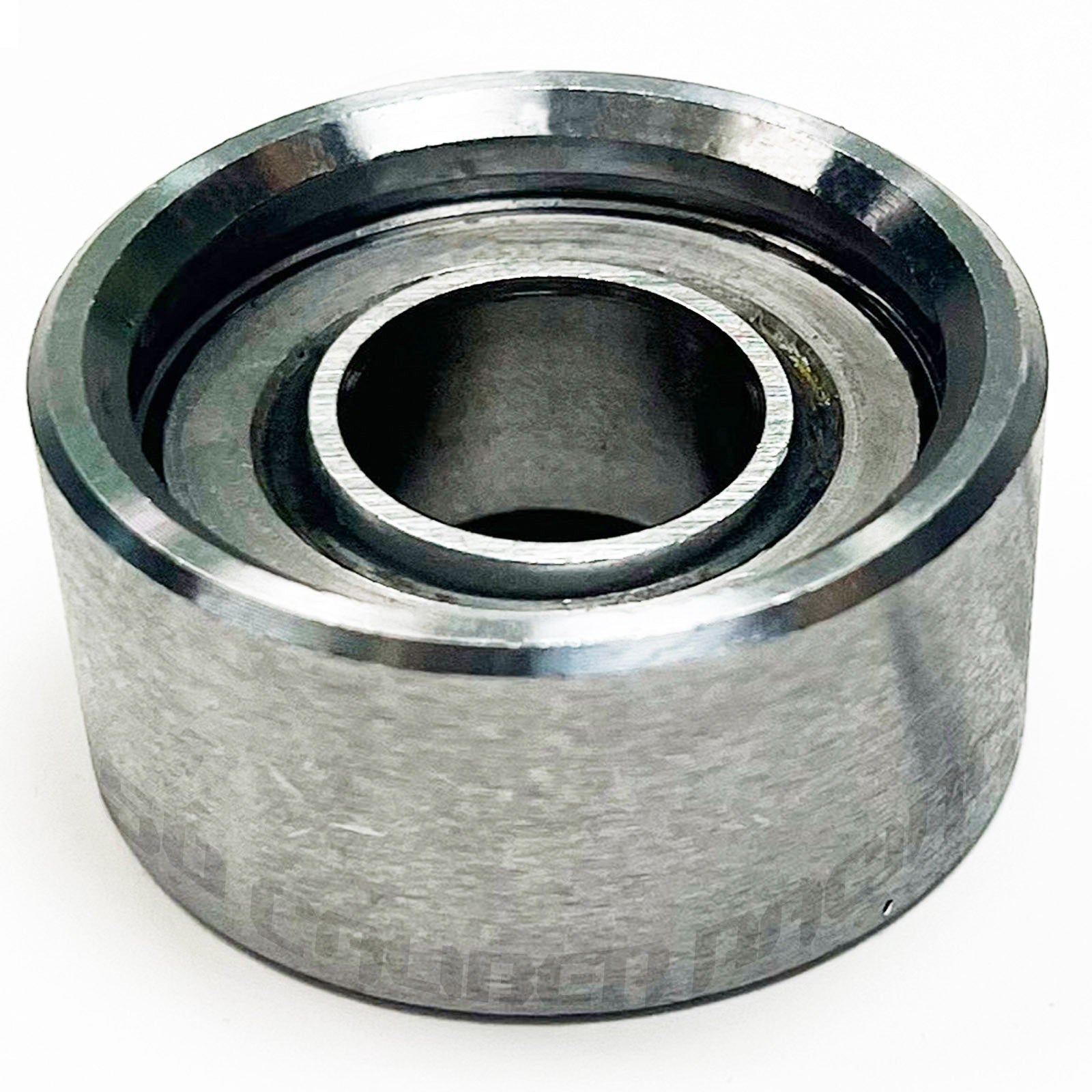

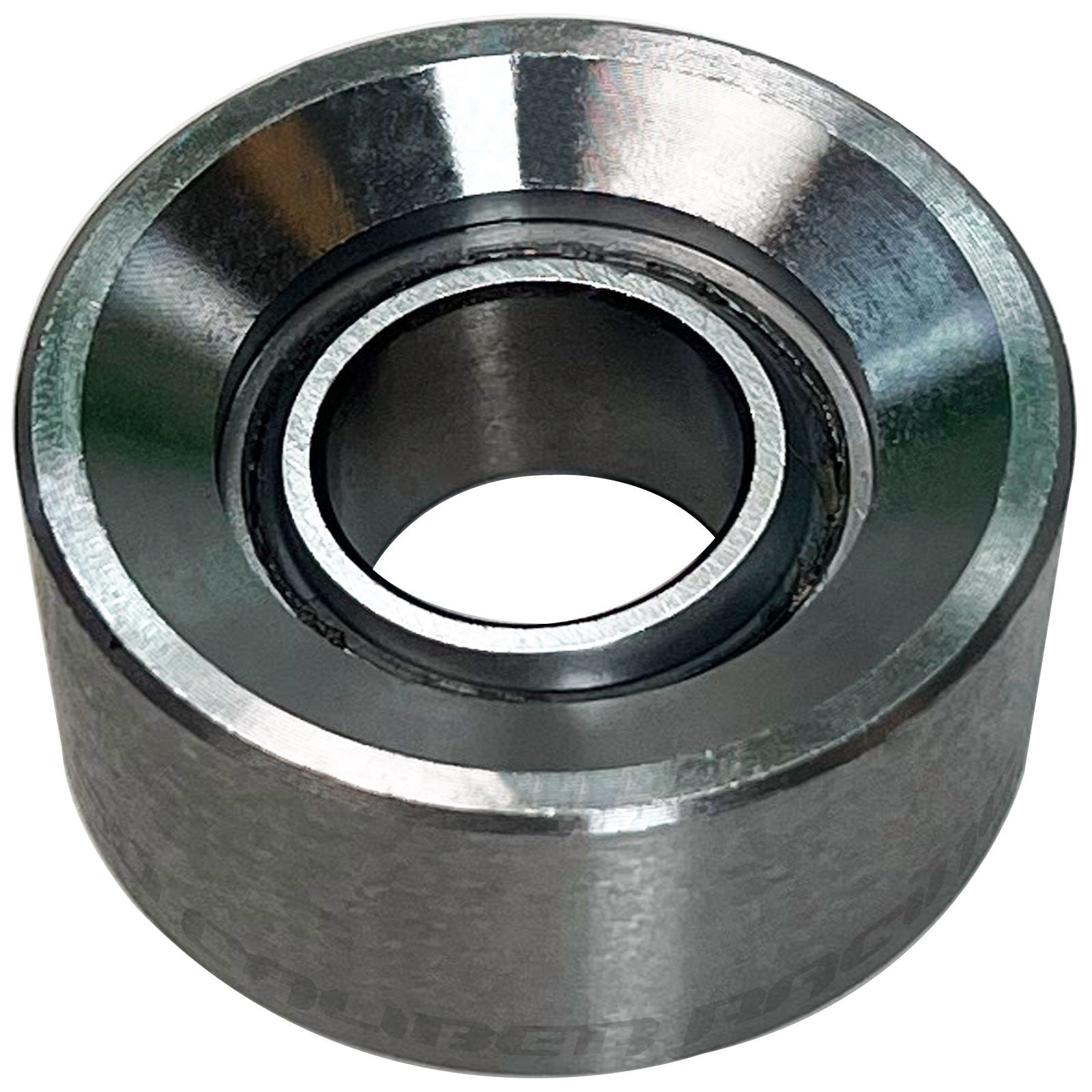

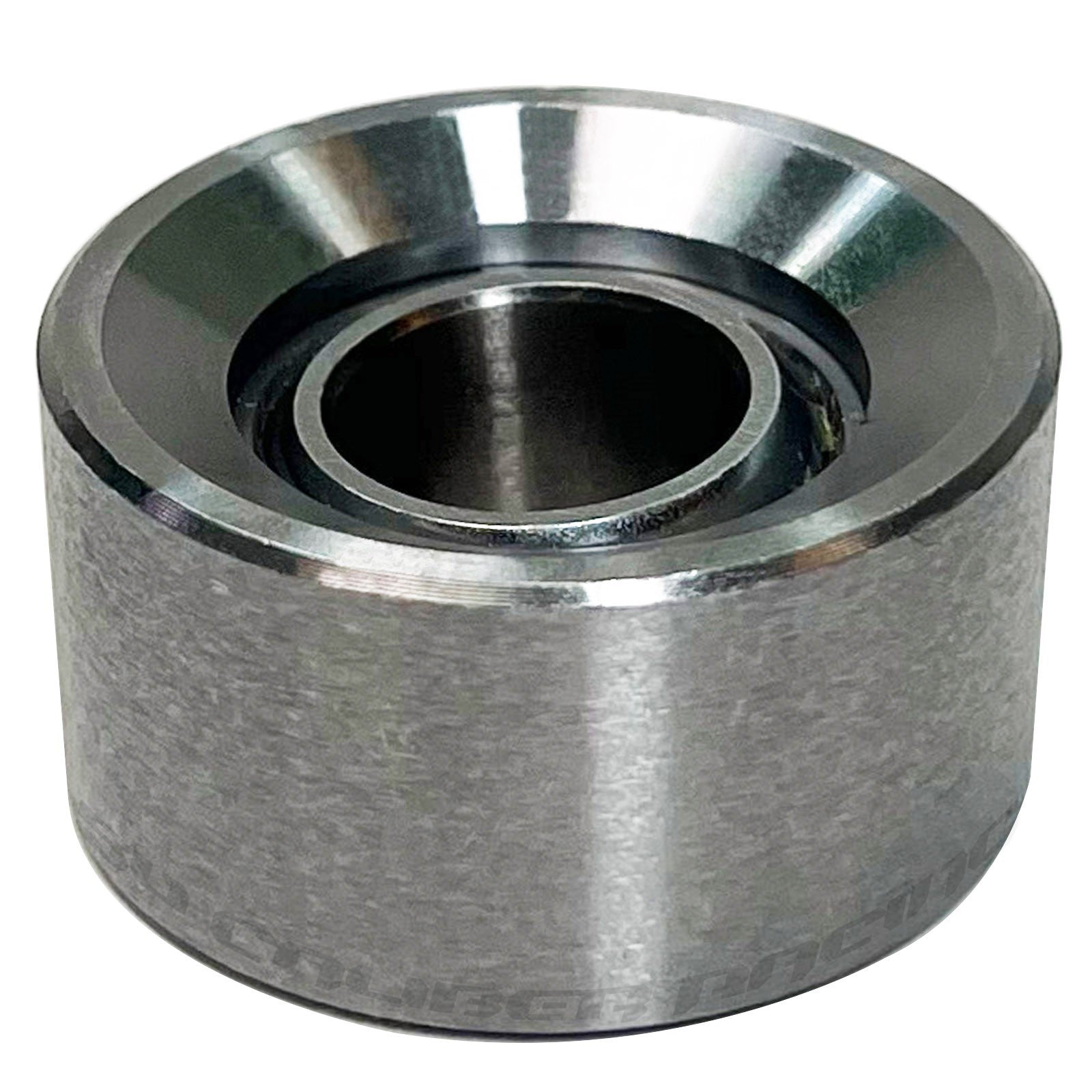

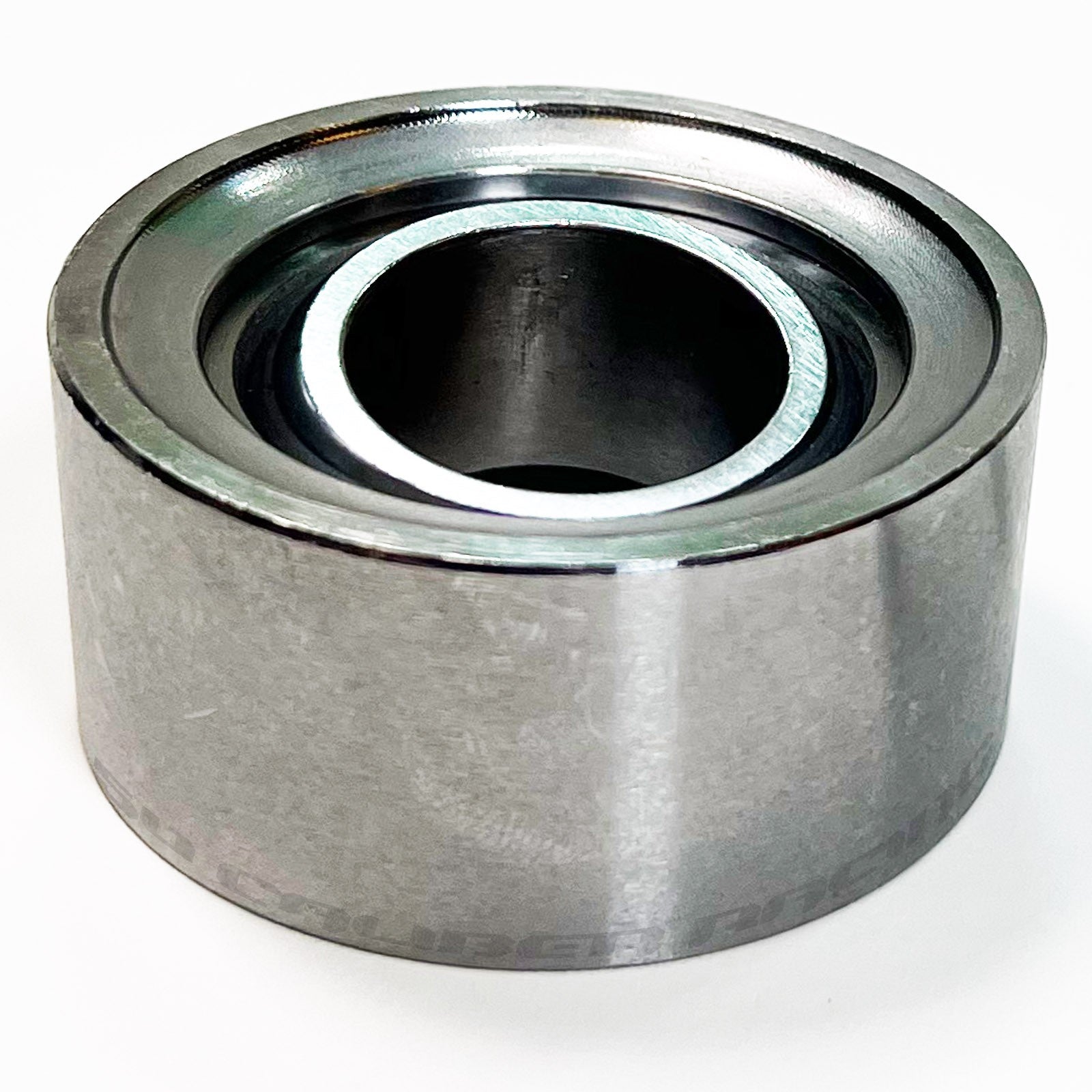

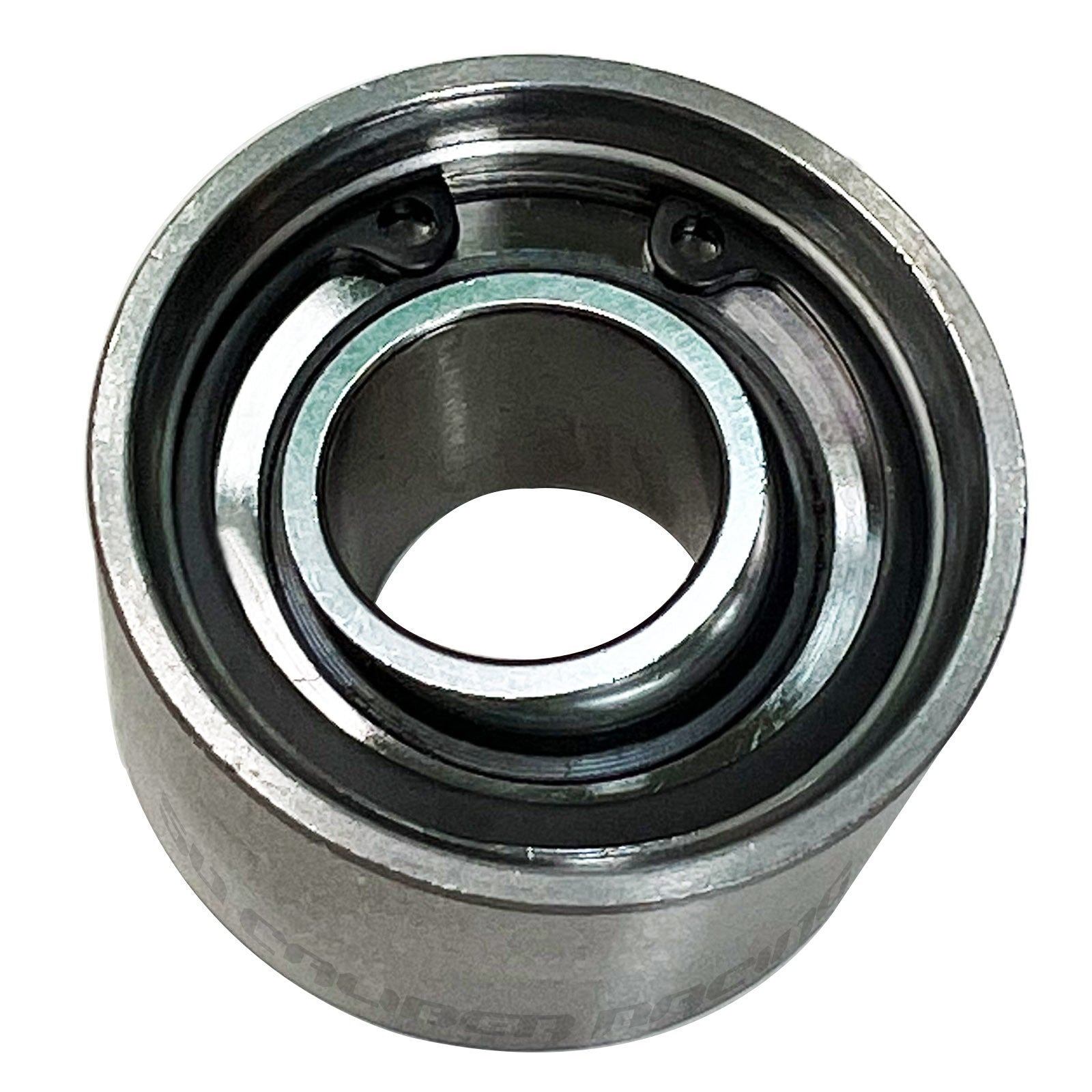

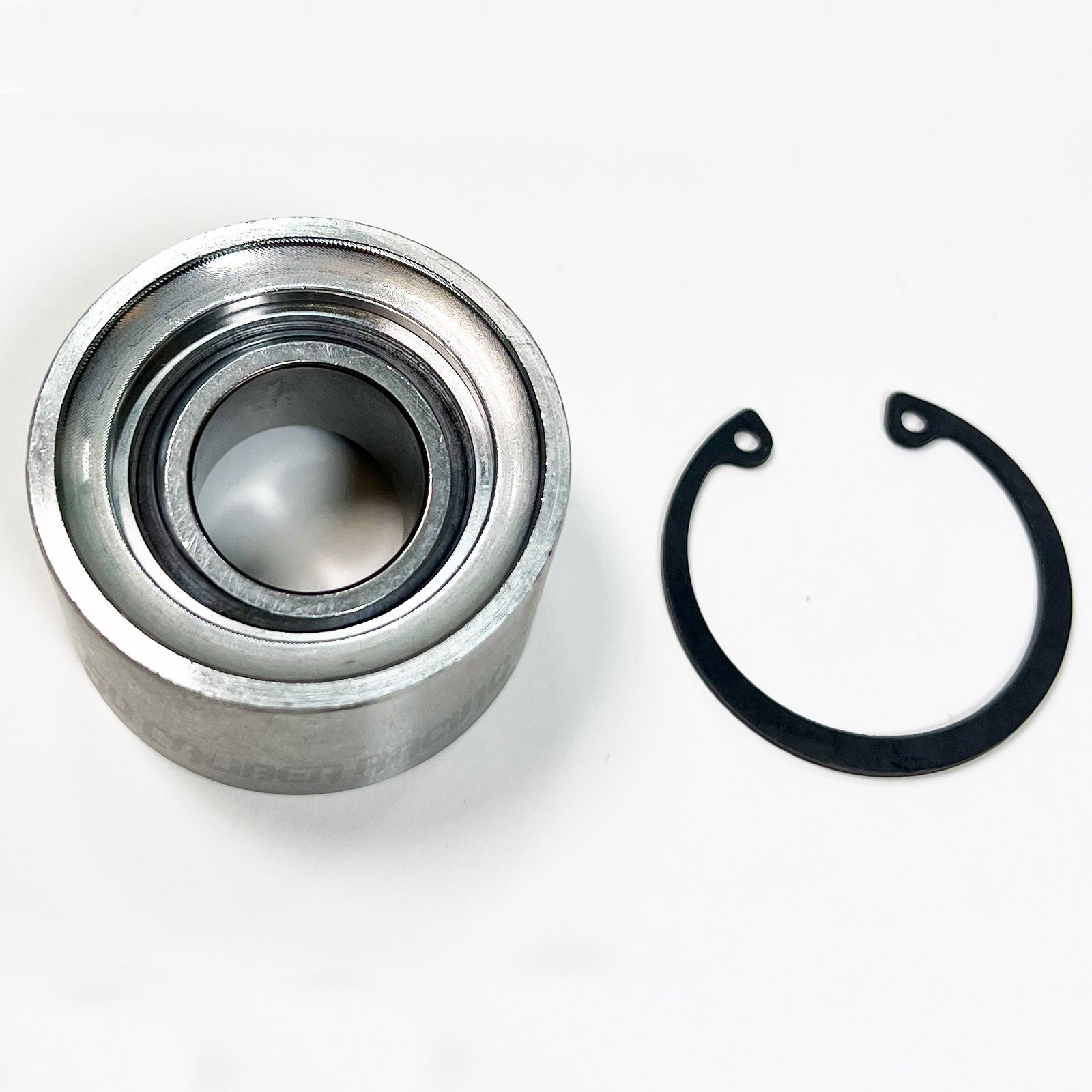

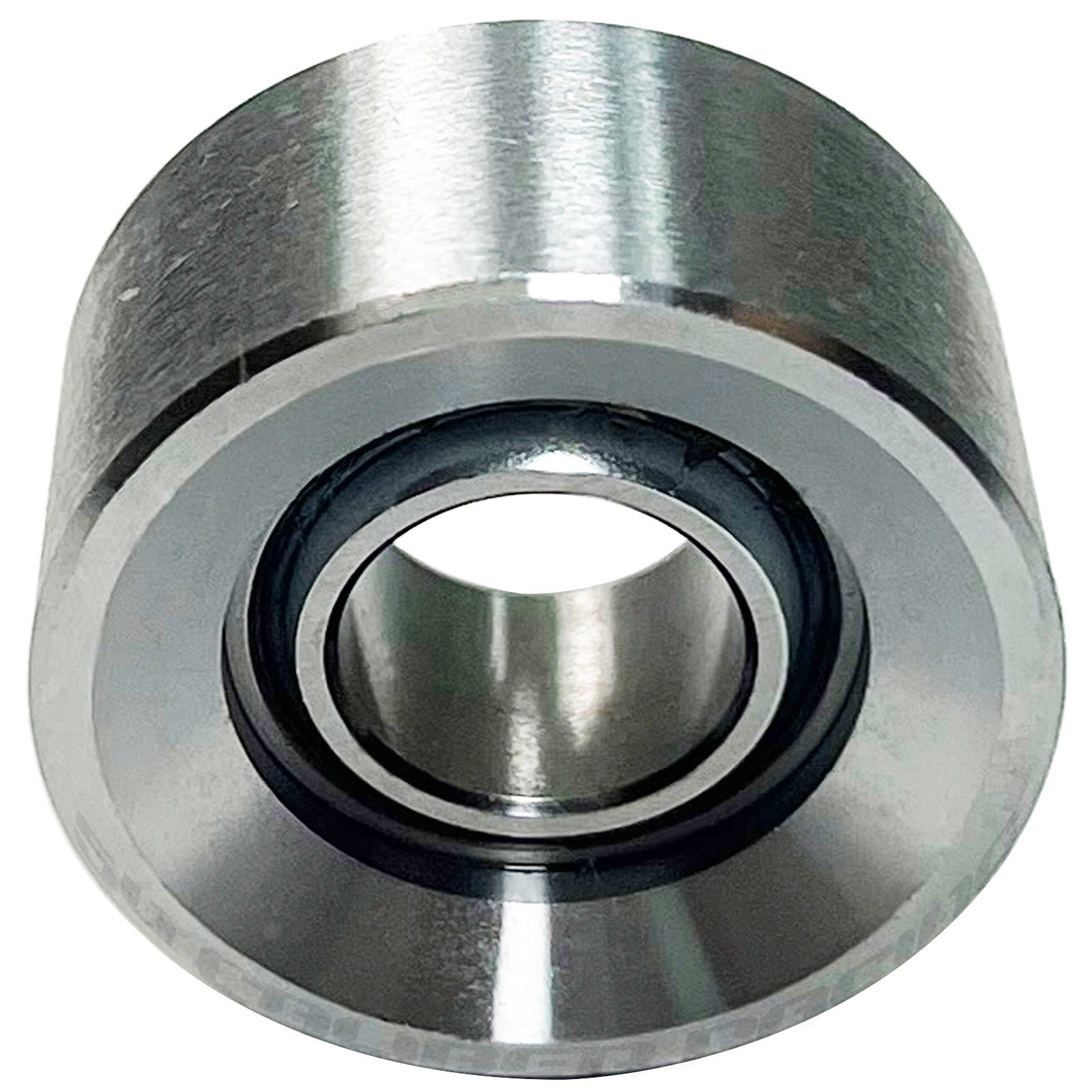

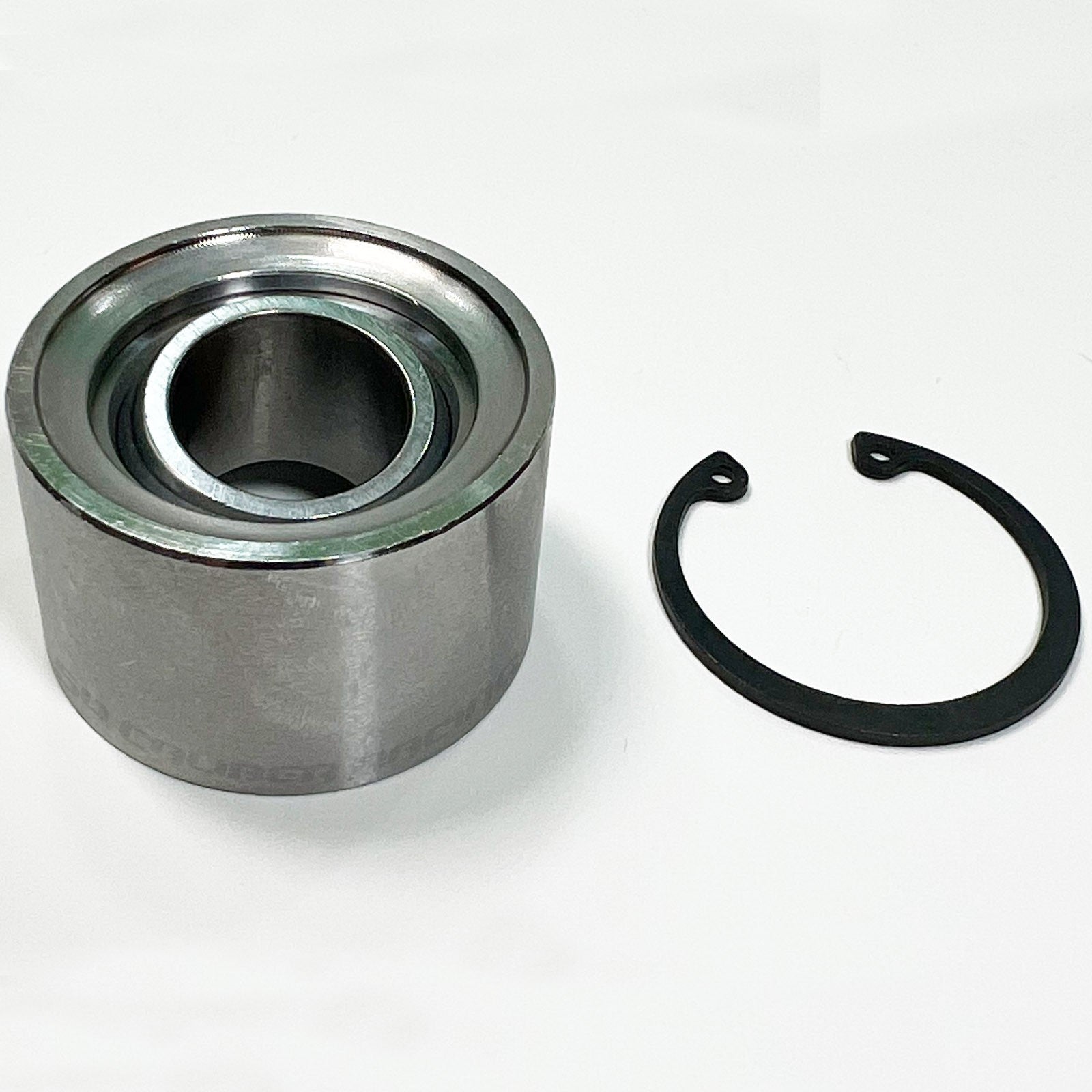

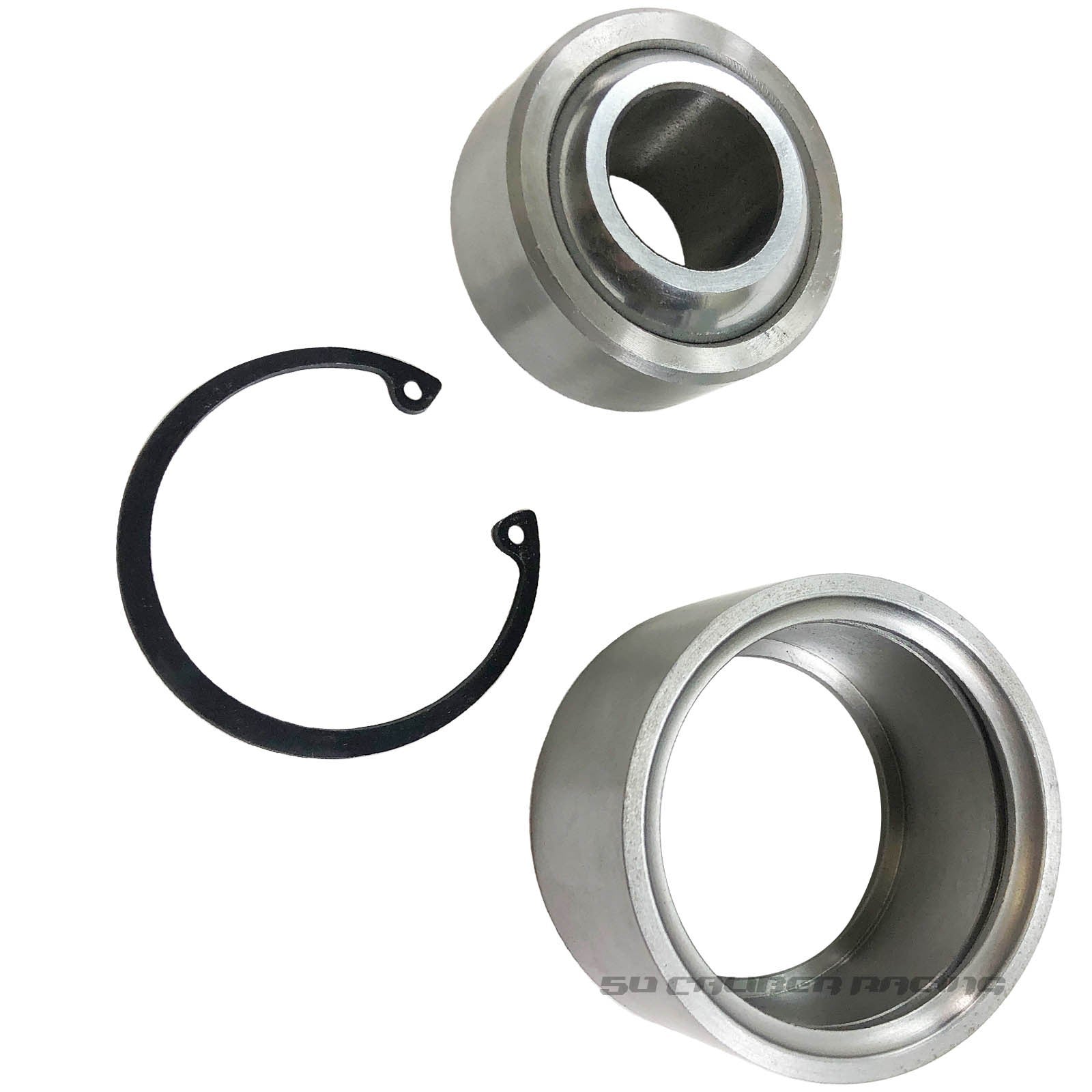

Complete kit including bearing, cup and snap ring. Our uniball spherical bearings are made from 4130 chromoly alloy with a self lubricating PTFE (nylon/teflon) liner for smooth, long lasting performance and easy maintenance. Precision machined cup includes a matching spring steel snap ring retainer. The size and load rating make them perfect for fabricating chassis components like A-arms and radius rods, and are available in many sizes to fit most any off road or race application.
Specifications:

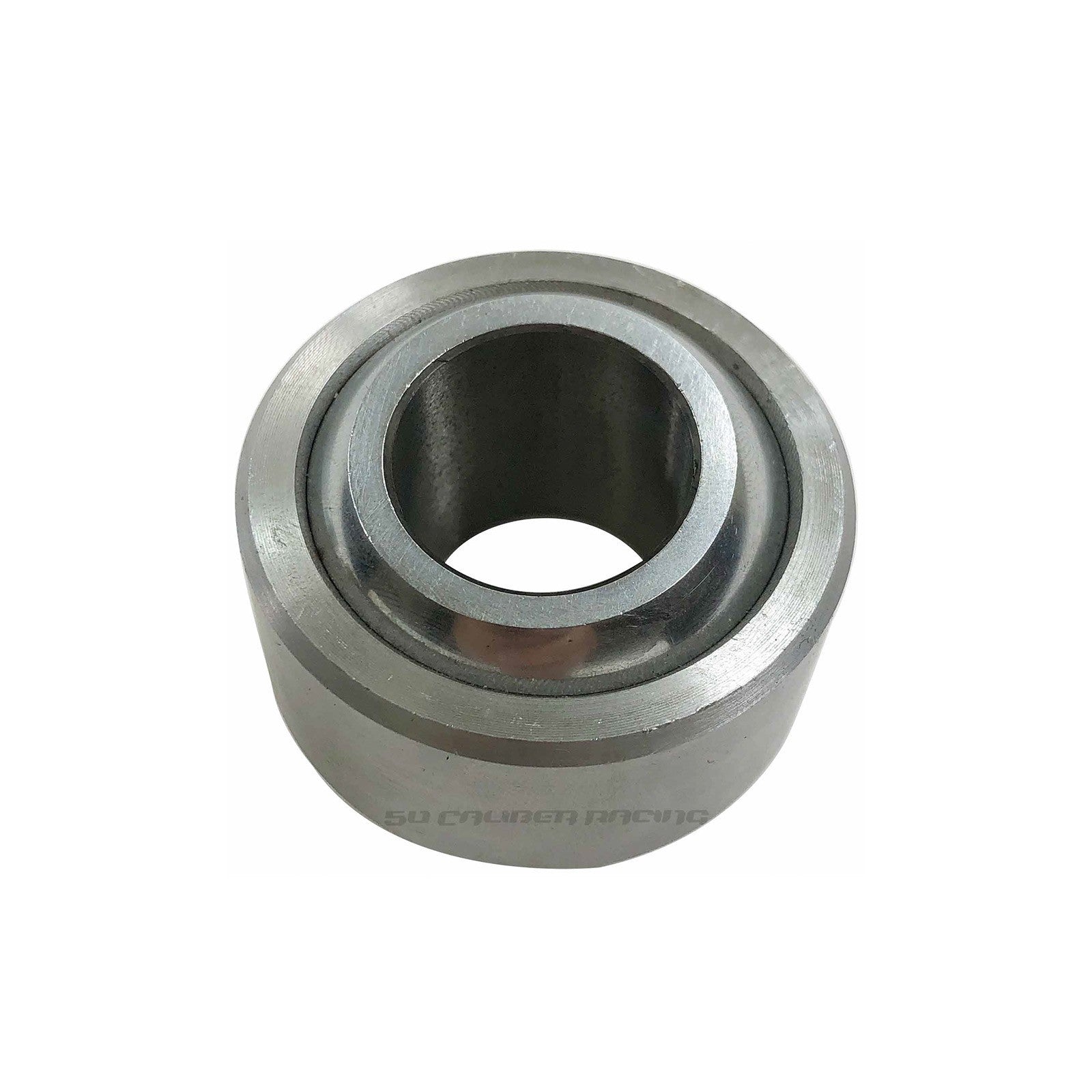

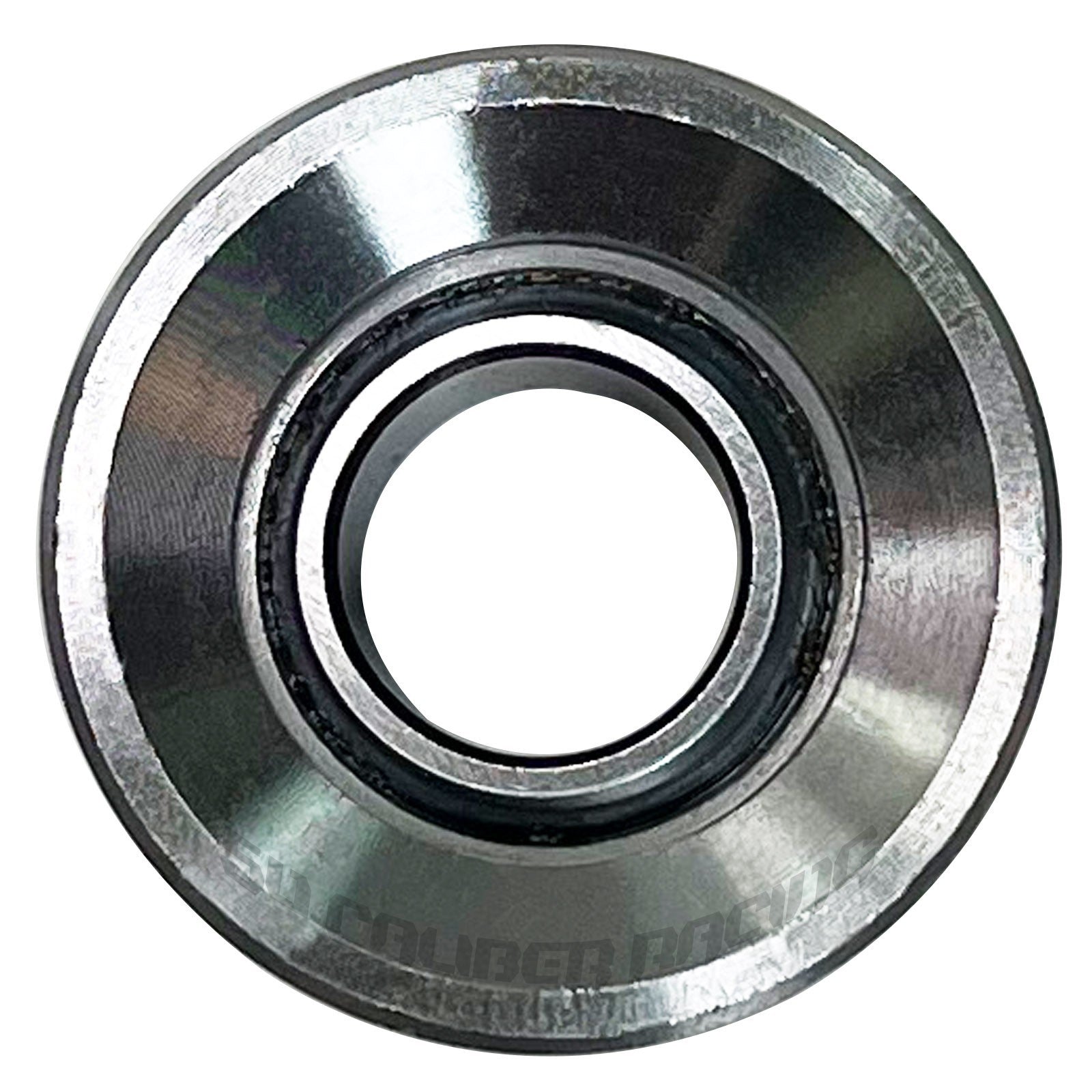

Bearing:
- 52100 Precision ground steel ball
- Hard Chrome plated bearing
- 4130 Chromoly Outer Race
- Heat treated
- Corrosion resistant coating
- Self-Lubricating PTFE (nylon/teflon) Liner

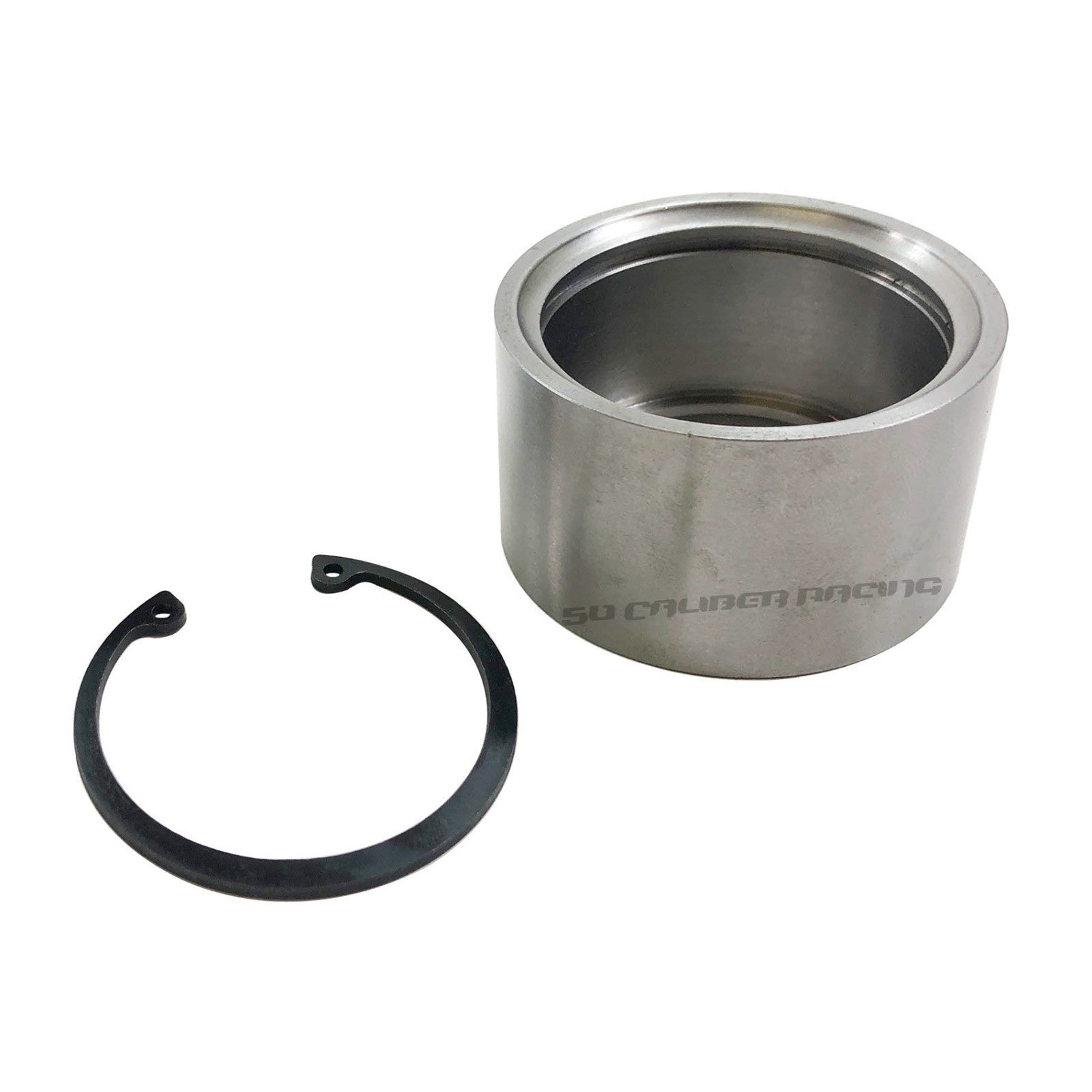

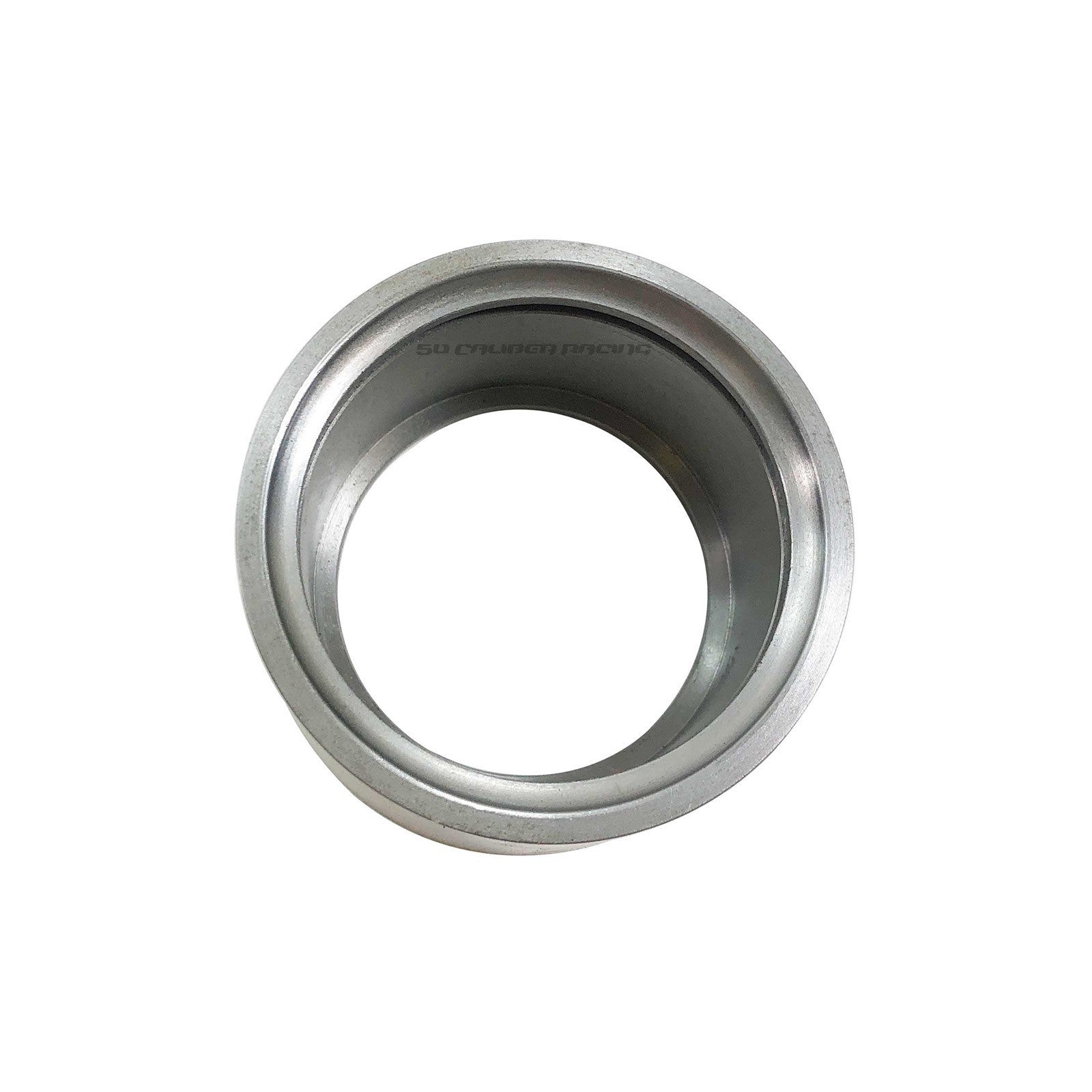

Cup:
- 4130 Chromoly Steel
- Precision machined

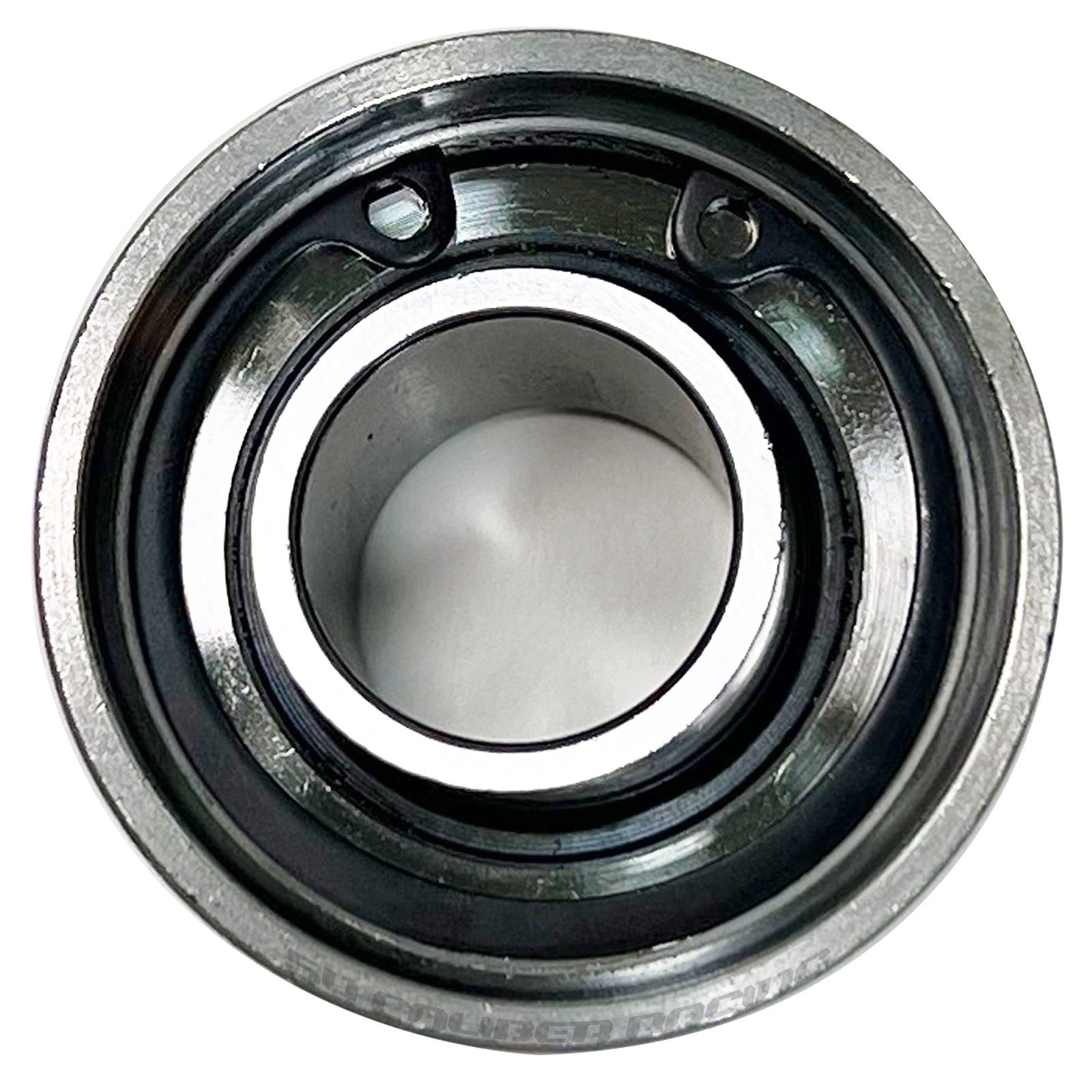

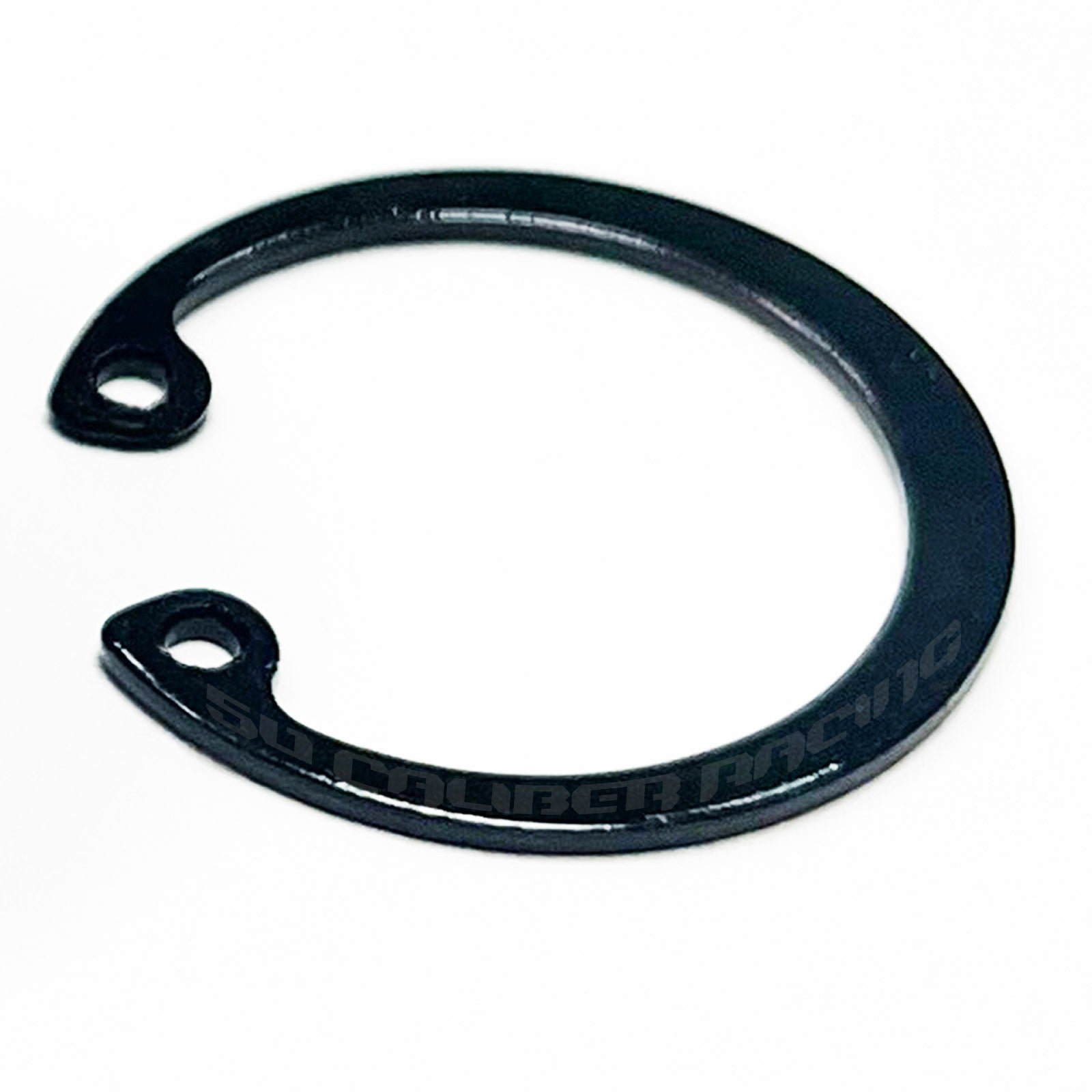

- Snap ring retainer included
Available in .5", .75", 1", 1.25" and 1.5" bore sizes. We also offer replacement spherical bearings here.

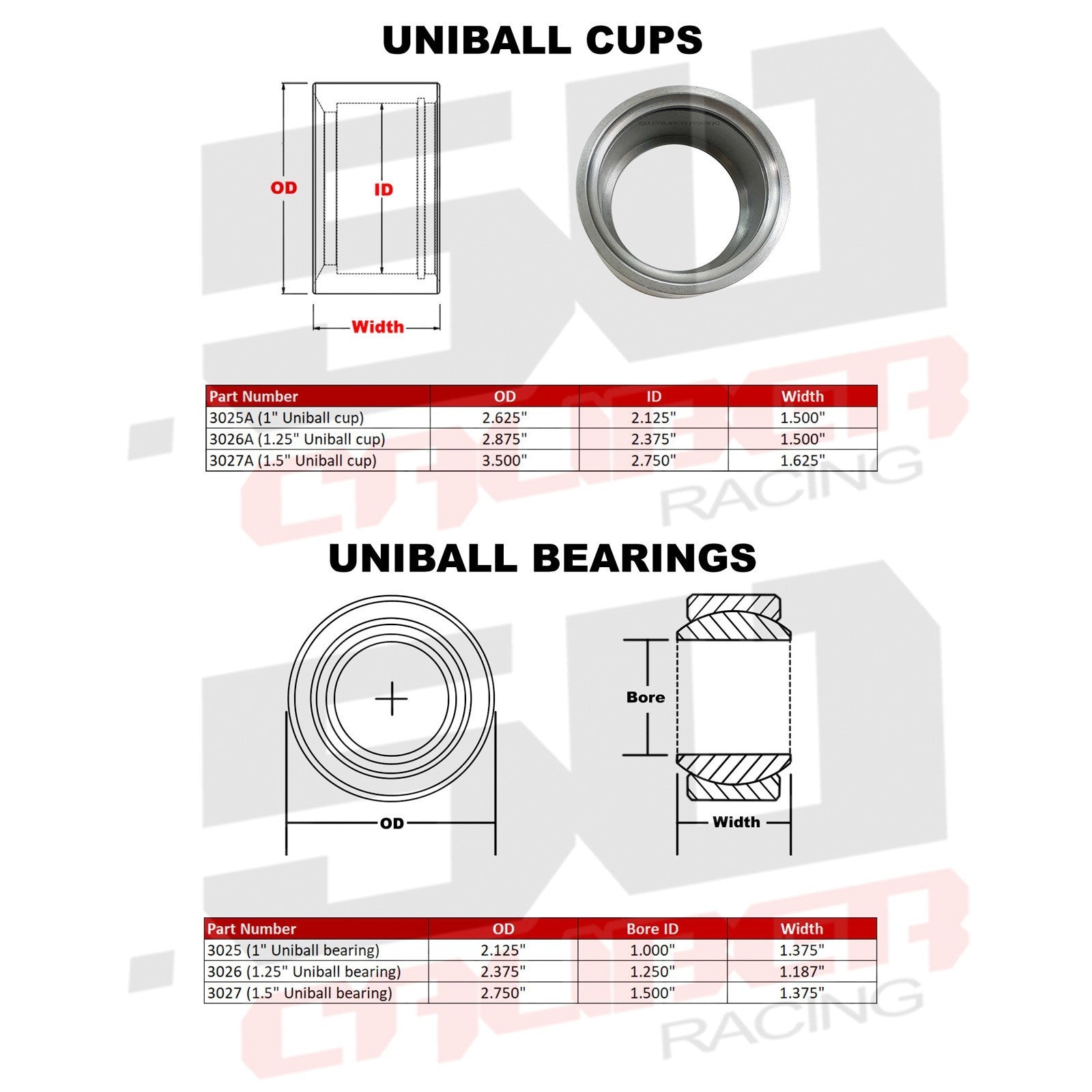

| Part # | Bearing Center Bore | Cup Diameter | Cup Width | Load Rating |

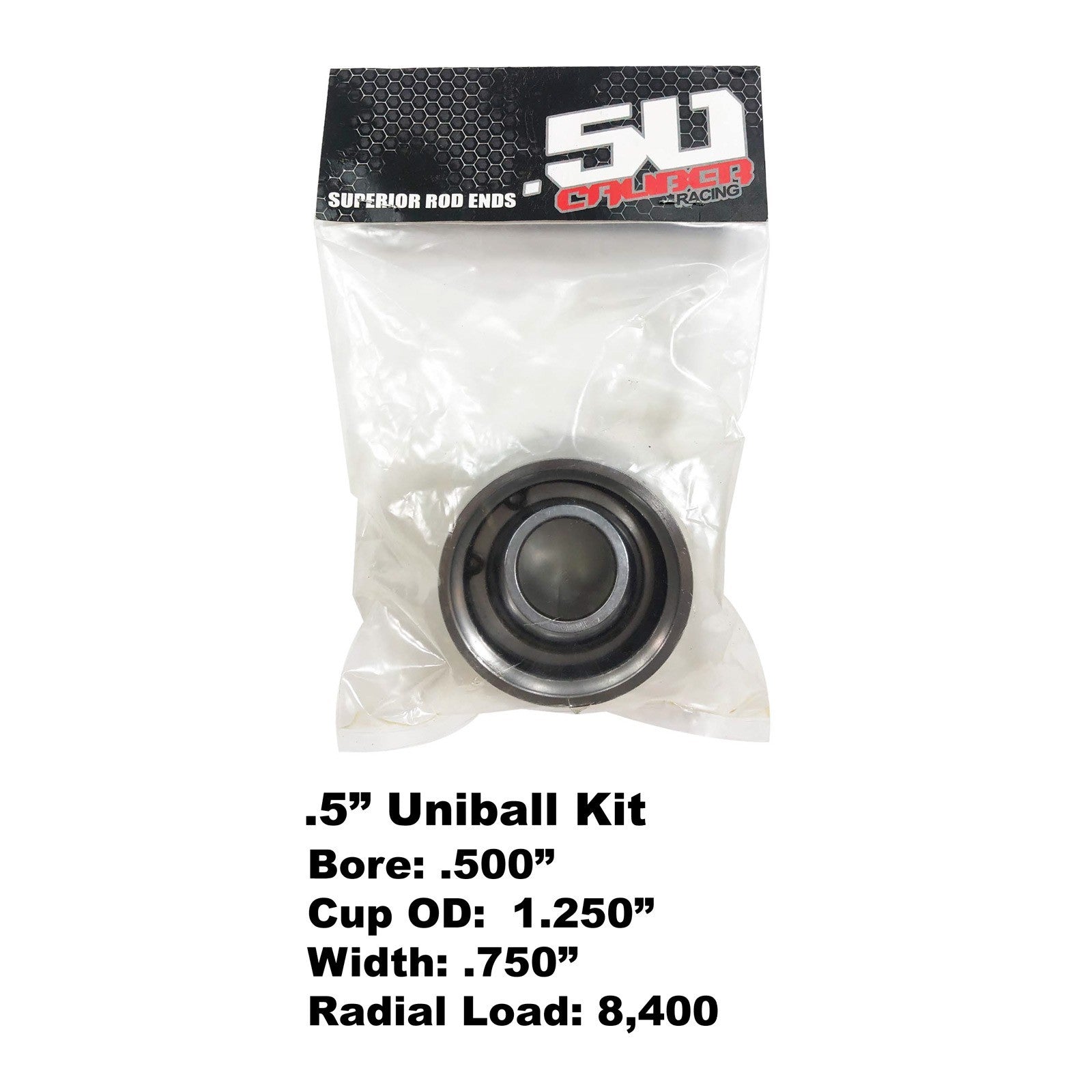

| 3024B | 0.500" | 1.250" | .750" | 8,400 |
| 3028B | 0.750" | 1.750" | 1.000" | 31,920 |
| 3025B | 1.000" | 2.625" | 1.500" | 104,000 |

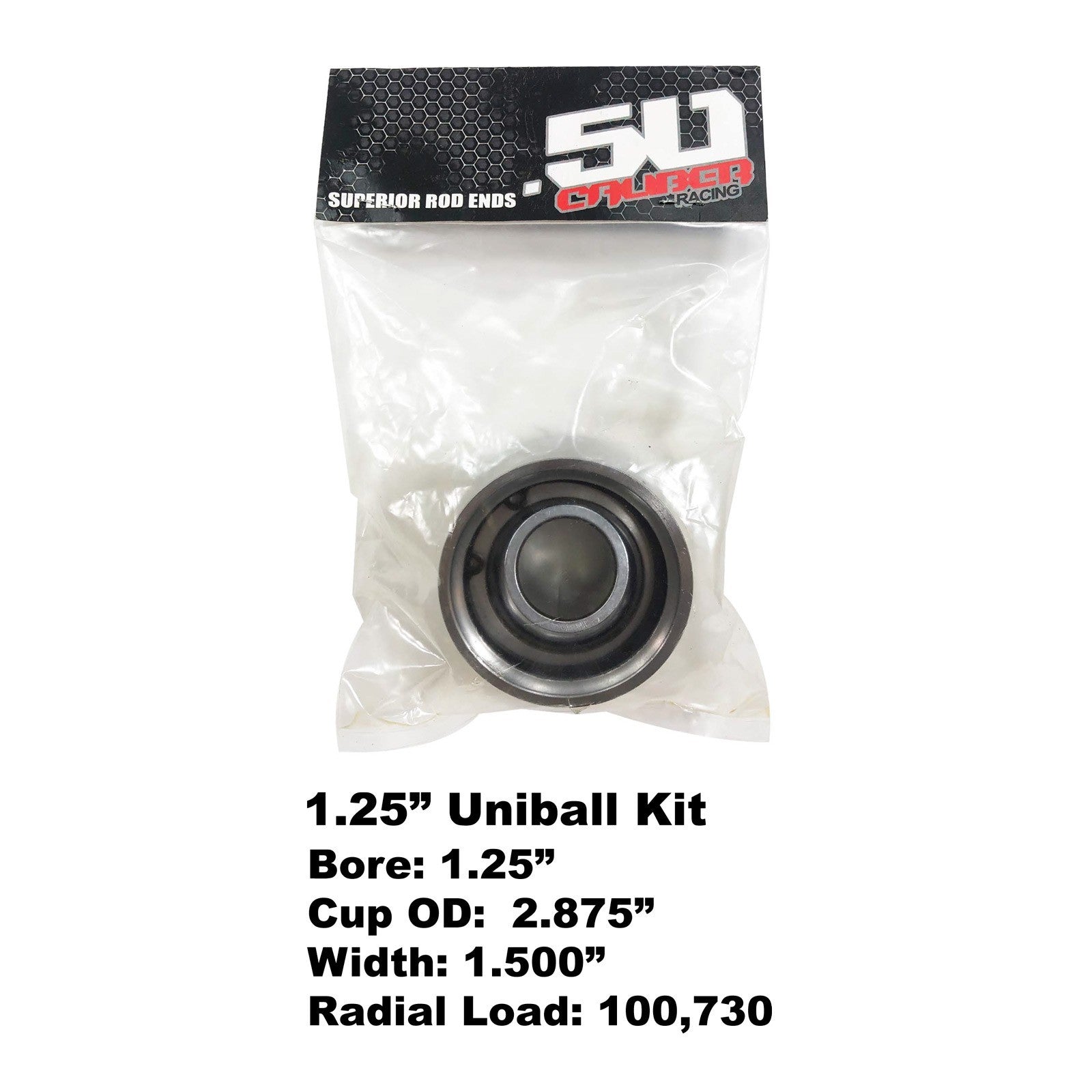

| 3026B | 1.250" | 2.875" | 1.500" | 100,730 |
| 3027B | 1.500" | 3.500" | 1.625" | 135,950 |
