Panhard Bar Fab Kit - 5/8 Chromoly Heim - 1.25 OD Tubing

Panhard Bar Rod End Kit - 5/8-18 x 5/8 Bore Chromoly Heims, Bungs for 1" ID Tubing

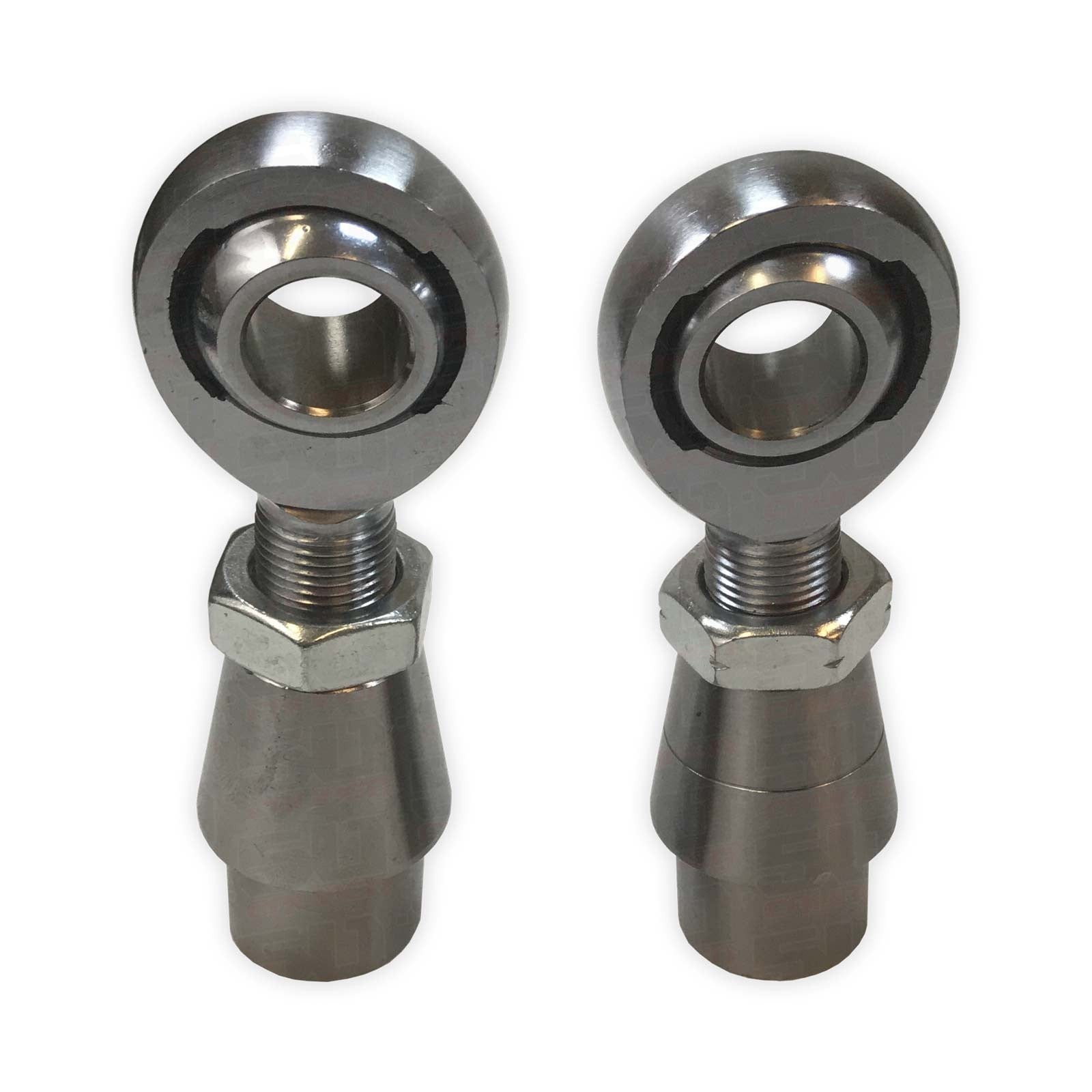

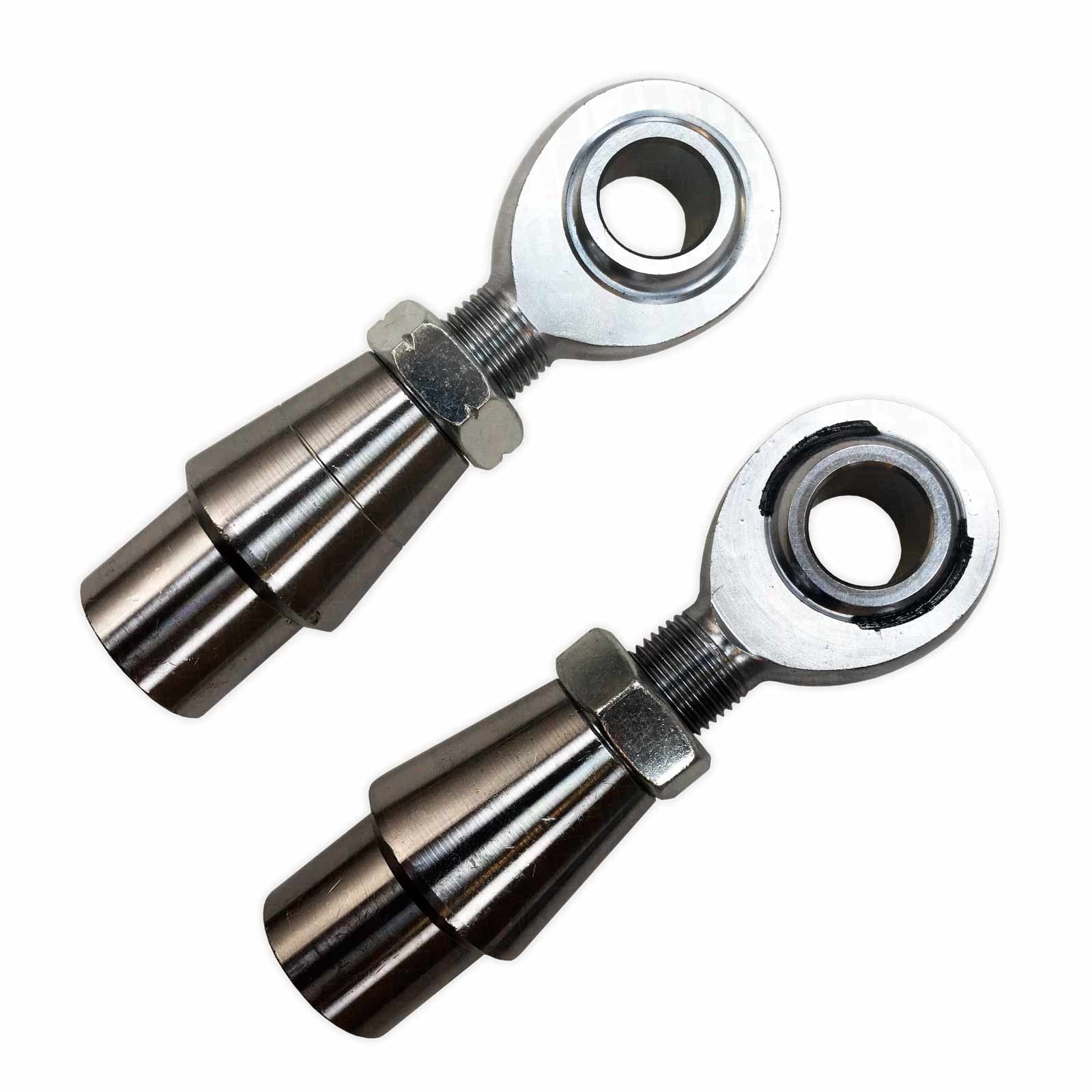

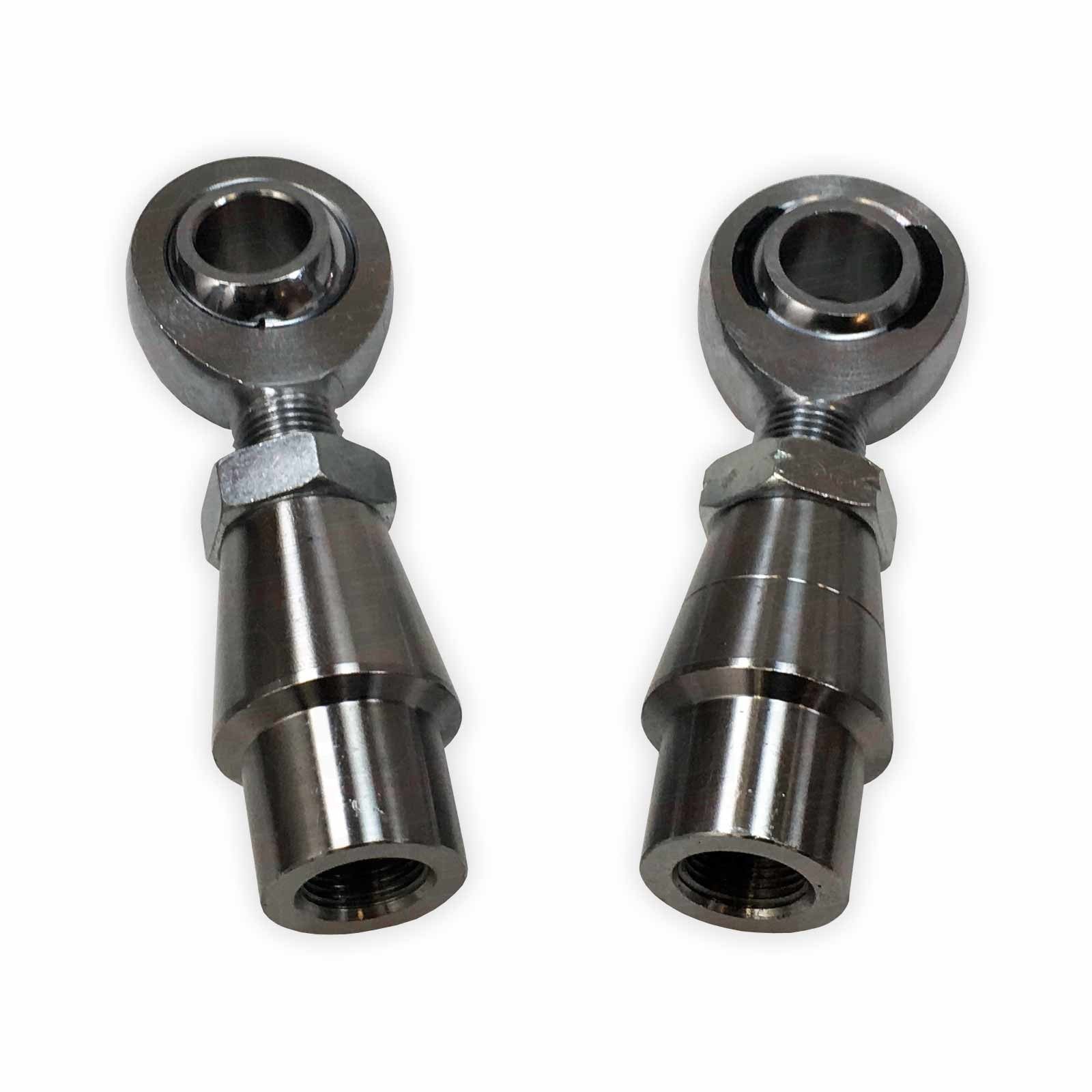

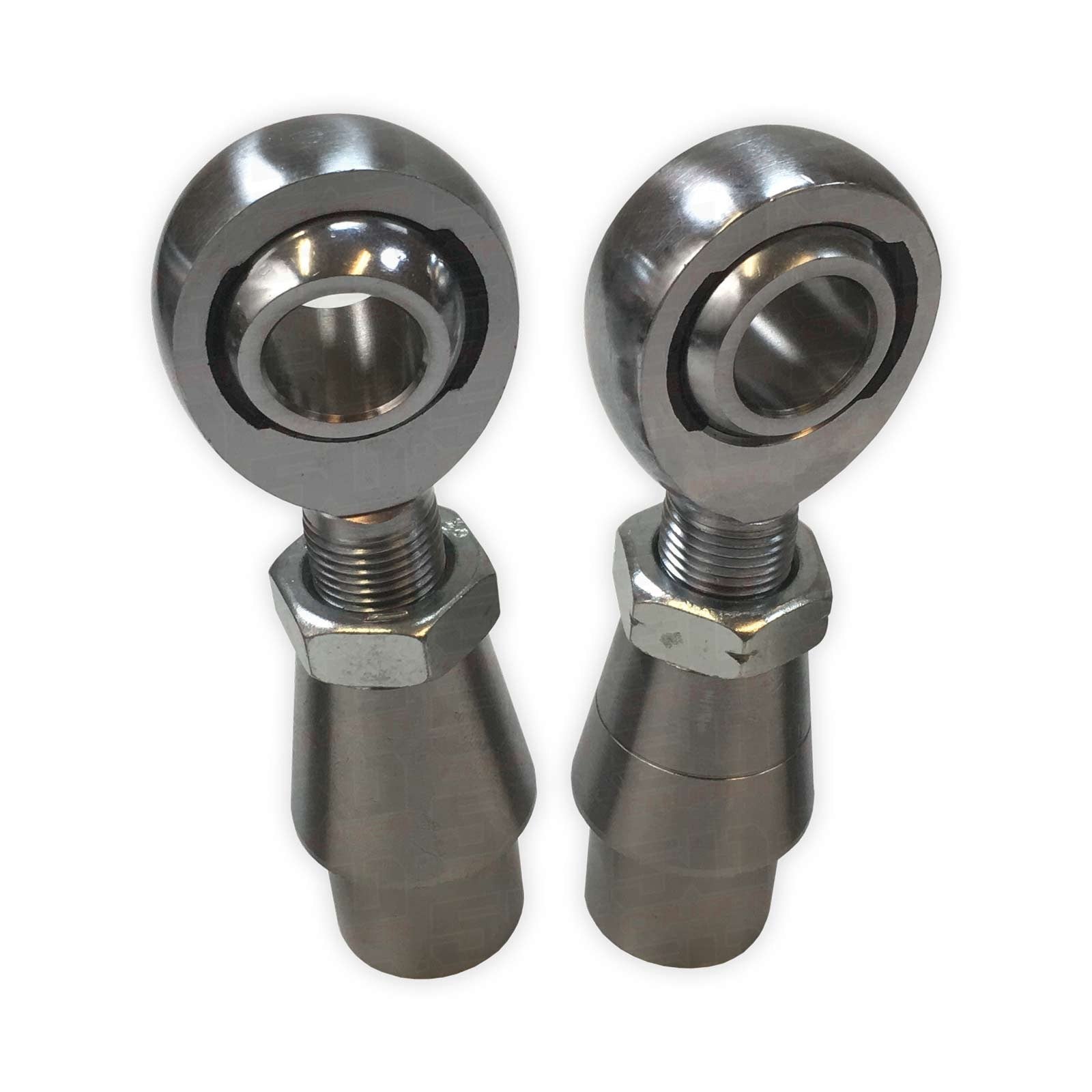

Rod end fabrication kit complete with 5/8 x 5/8 heat treated chromoly heim joints, jam nut, and a weld in bung (tube adapter). Designed specifically for 1.25" OD tubing, with wall thickness of .095 or .120. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The 17955 lb load rating and size make these excellent for building a custom panhard bar (trackbar), tie rods and radius arms for UTVs, cars, trucks and more. Includes one Left hand thread and one Right hand thread heim joint, and matching bungs. Available with or without high misalignment spacers.

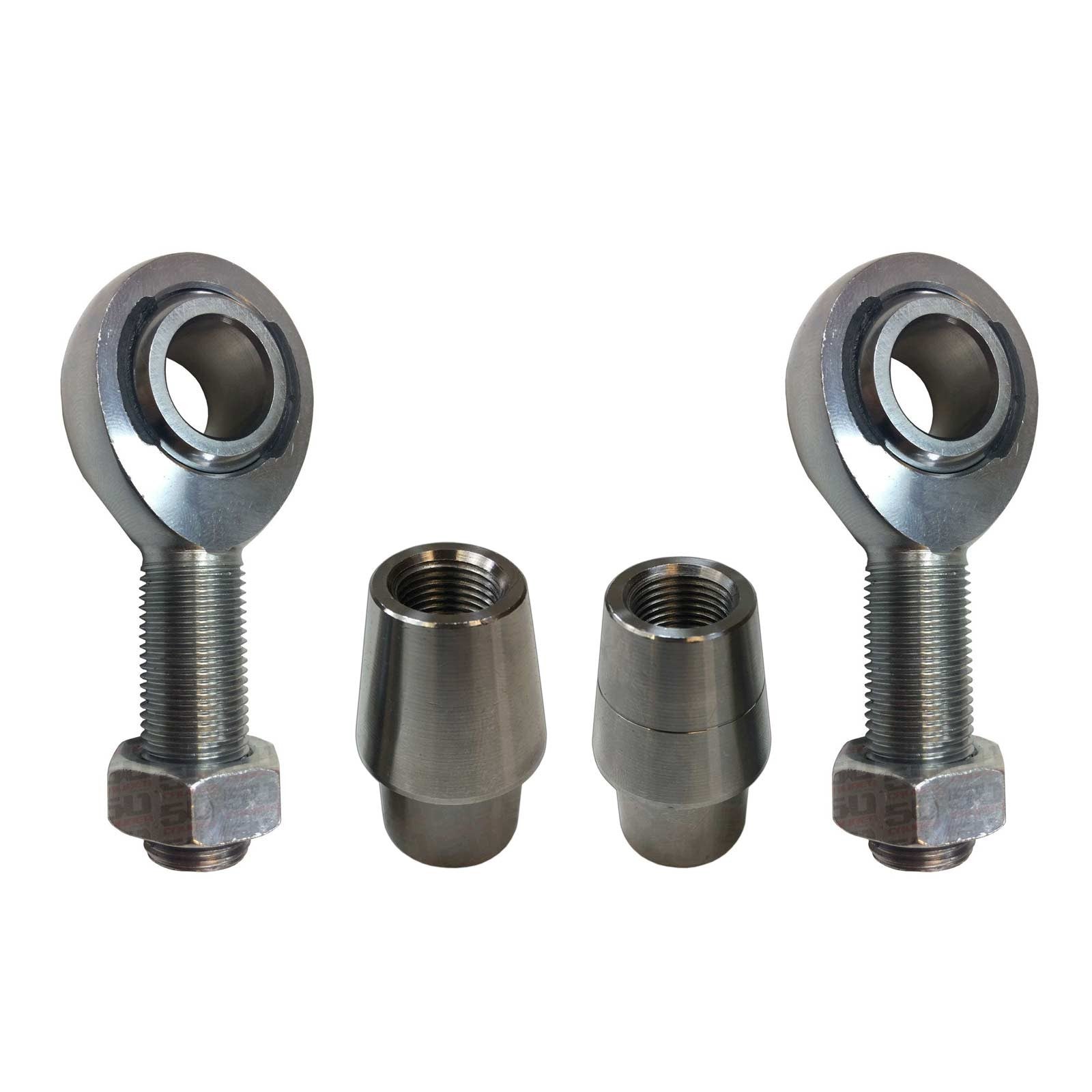

Includes:
- (1) 5/8-18 x 5/8 bore Heim - RH Thread
- (1) 5/8-18 x 5/8 bore Heim - LH Thread
- (1 RH Jam Nut
- (1) LH Jam Nut
- (1) RH Weld in Bung (tubing adapter)
- (1) LH Weld in Bung (tubing adapter)

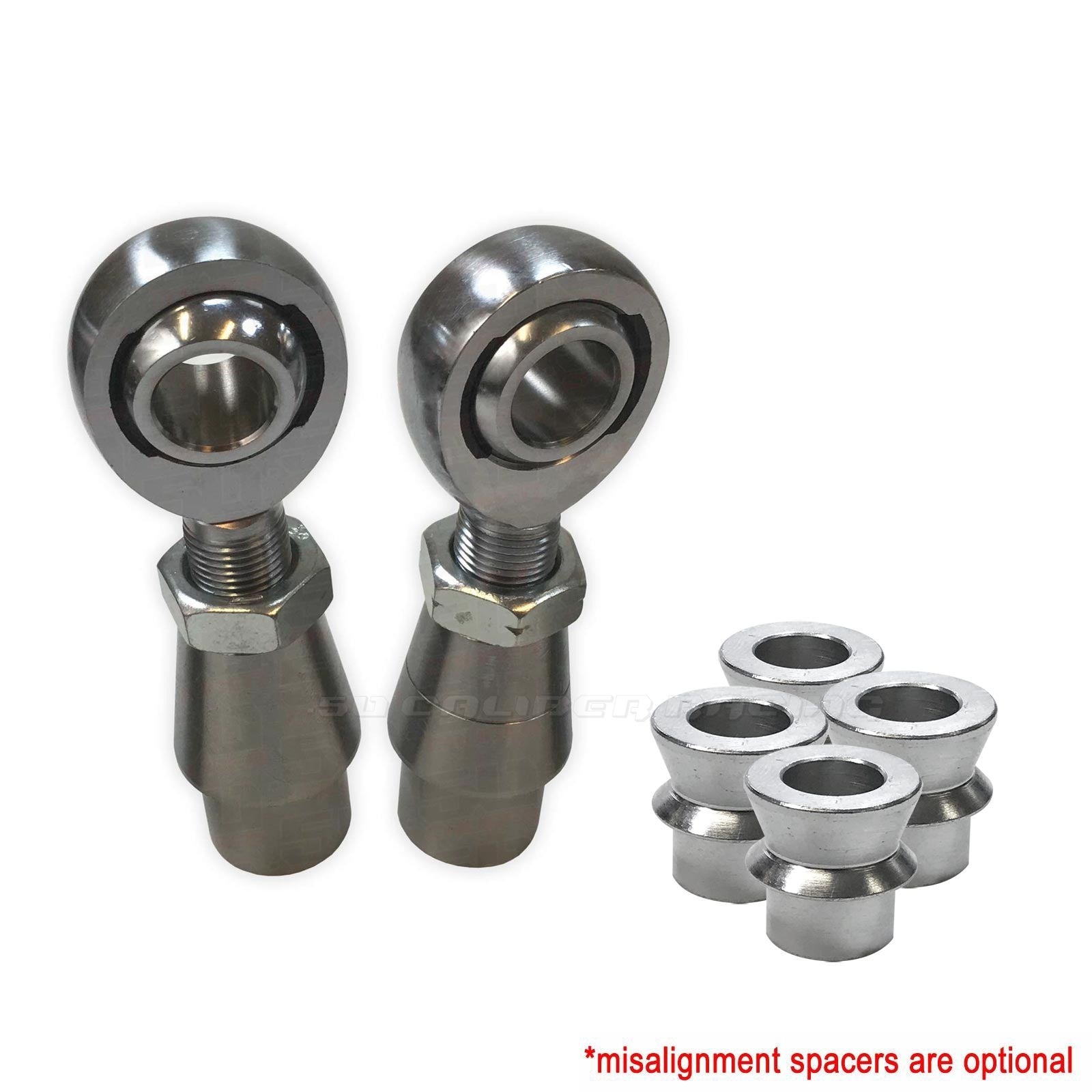

Optional:
- (4) High Misalignment Spacers

Specifications:

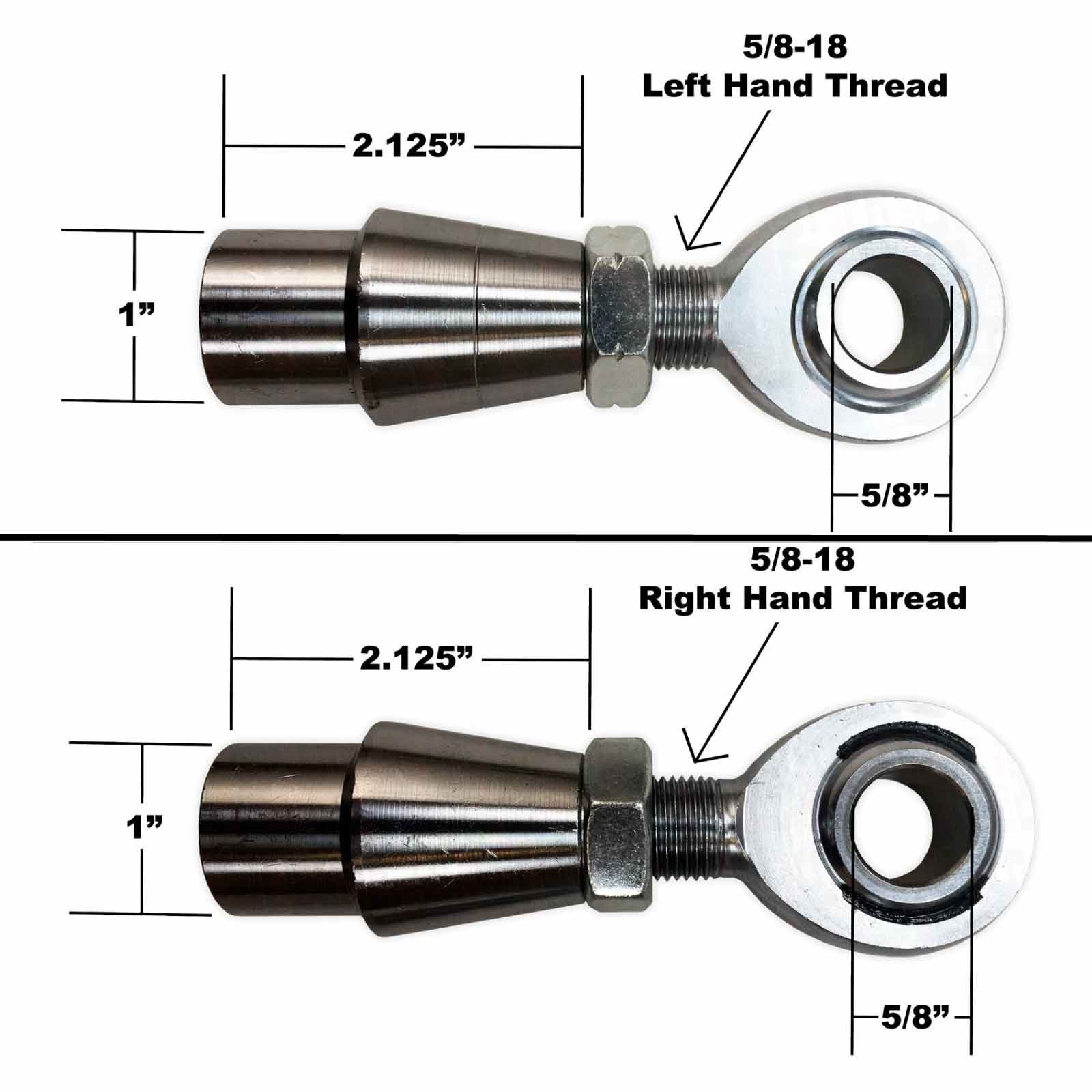

Heim Joint:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- Static radial load rating: 17,955 lb
- Thread pitch: 5/8" - 18
- Bore: 5/8"
- Ball end diameter: 1.5"
- Socket width: .562"
- Ball width: .75
- Overall length: 3.37"
- Center line length: 2.63"

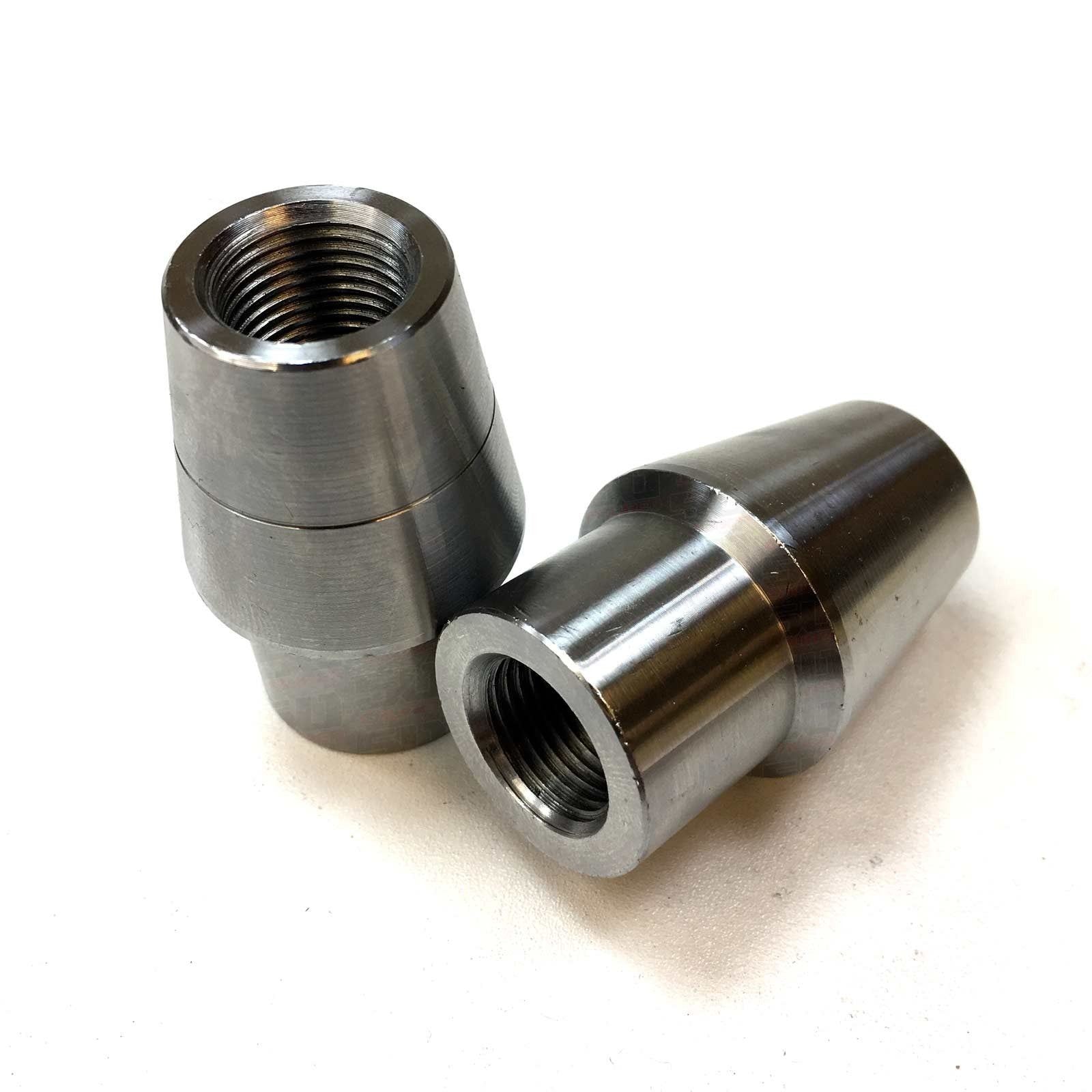

Bung:
- Thread: Female 5/8"-18
- Material: Chromoly Steel
- Thread Length: Full length

- Choose from 2 different tube sizes:
   1.25" OD x .095 Wall x 1.06" ID
   1.25" OD x .120 Wall x 1.0" ID

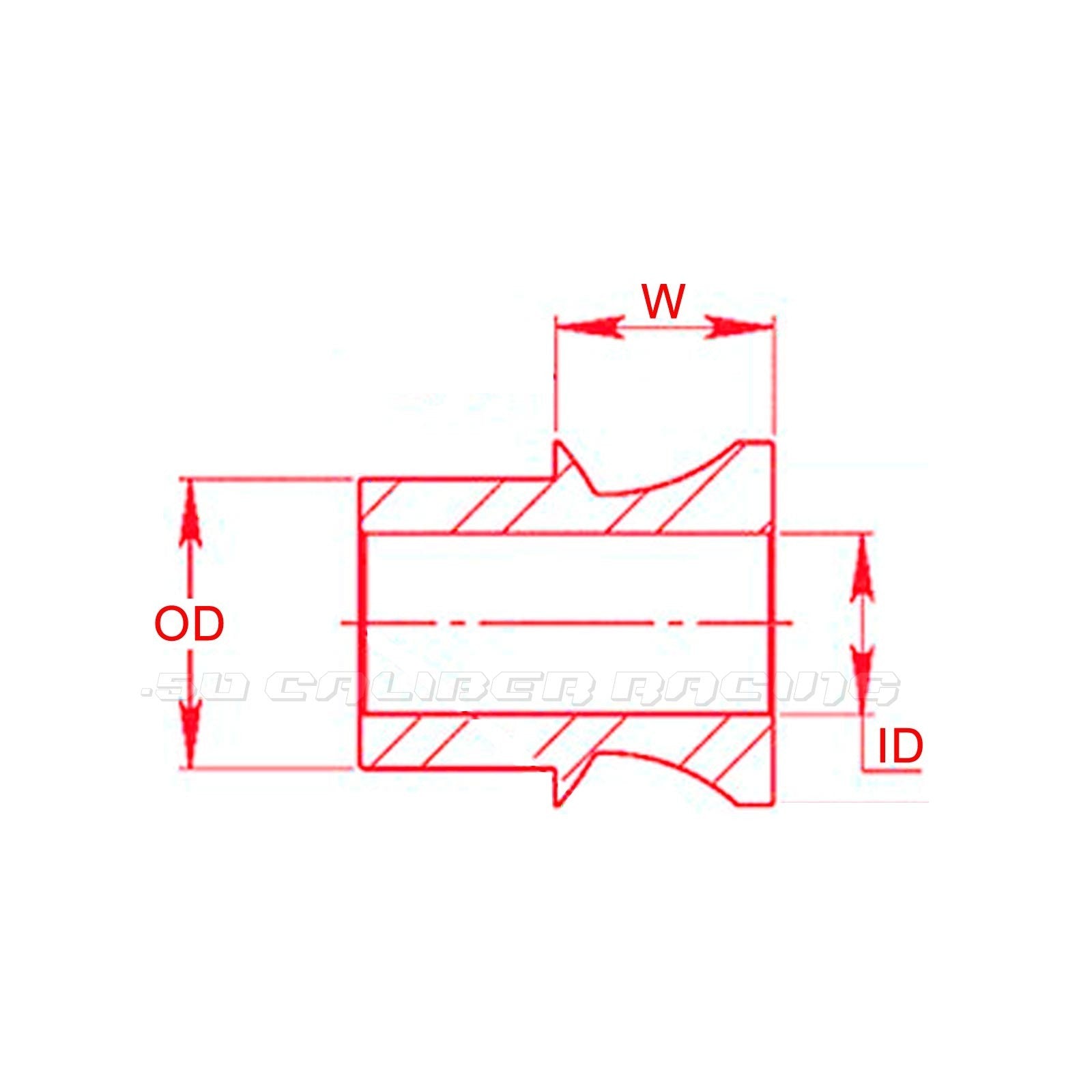

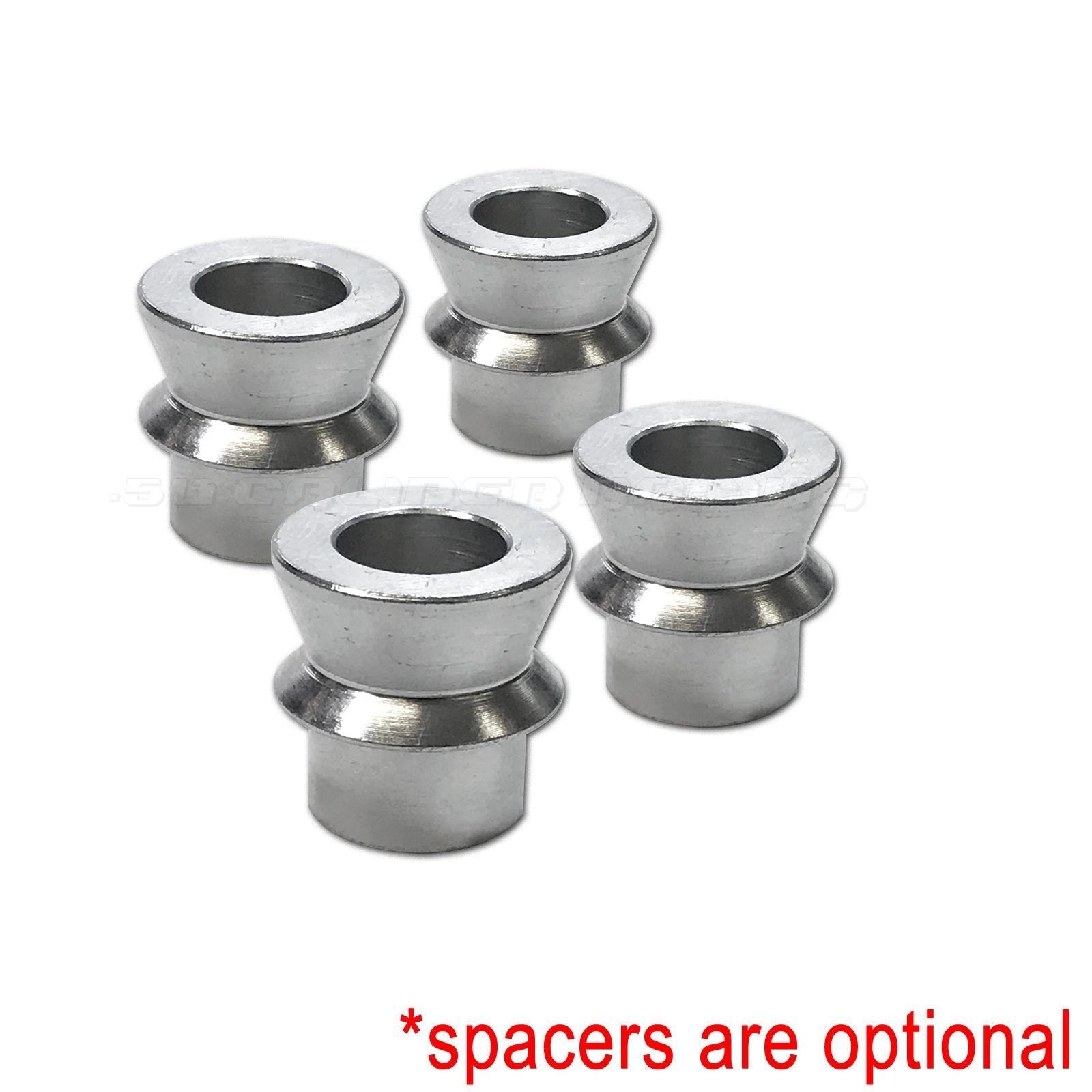

Misalignment Spacers (optional)
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .500" ID x .619" OD x .672" W
- Compatible with 1/2" bolt size

Perfect for fabricating custom suspension and steering links on your 4x4, sand rail, hot rod, race car, utv and more!

- Panhard bar / Trackbar
- Drag link
- Hi steer components
- Radius rods
- Sway bar links
- Tie rods
- Control arms
- 4 Link setups
- Custom Mounts
