Single Joint Rod End - 1/2" Chromoly Heim - 1" OD Tubing

Single Joint Rod End Kit - 1/2 Chromoly Heim Joint with Bung for 1.0" OD Tubing

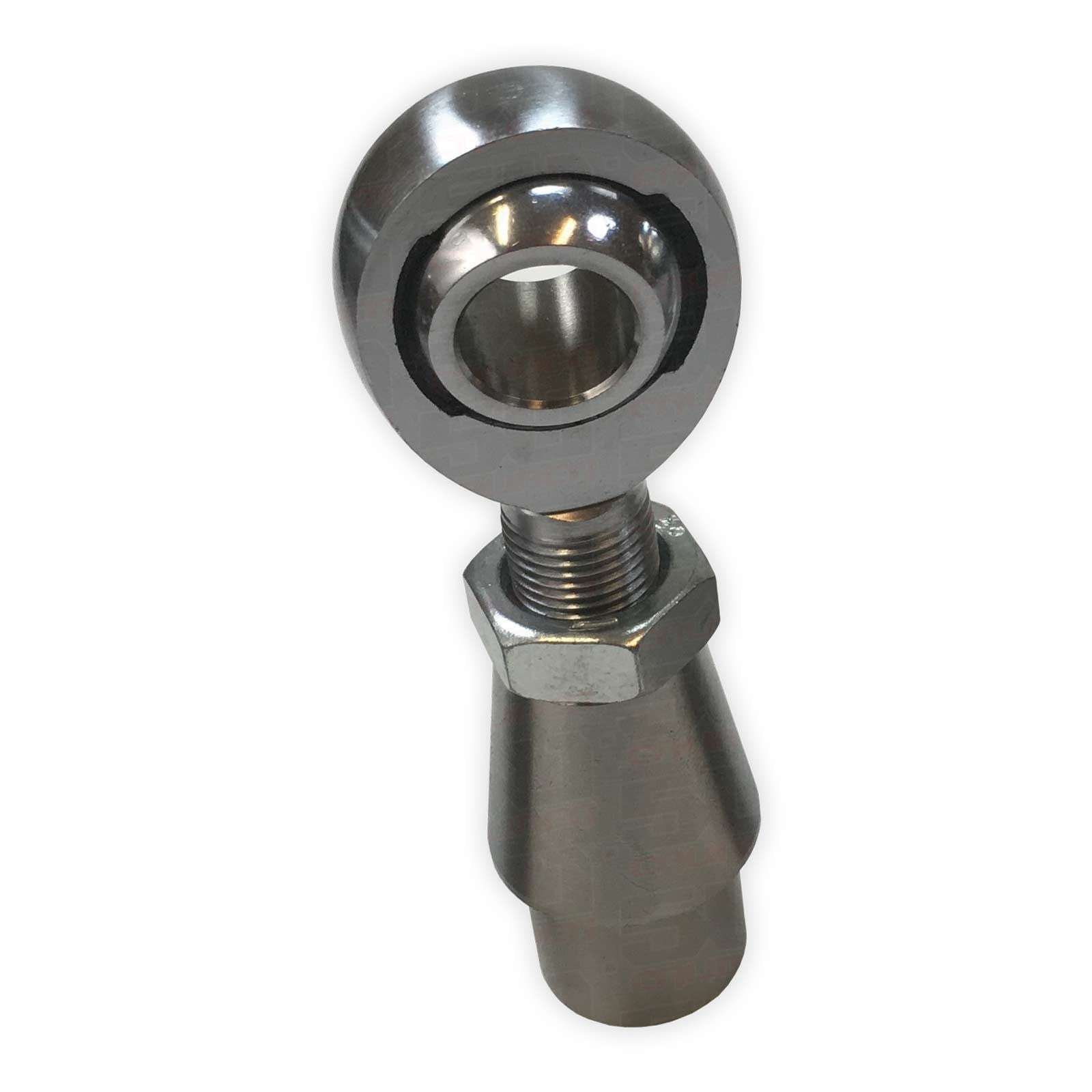

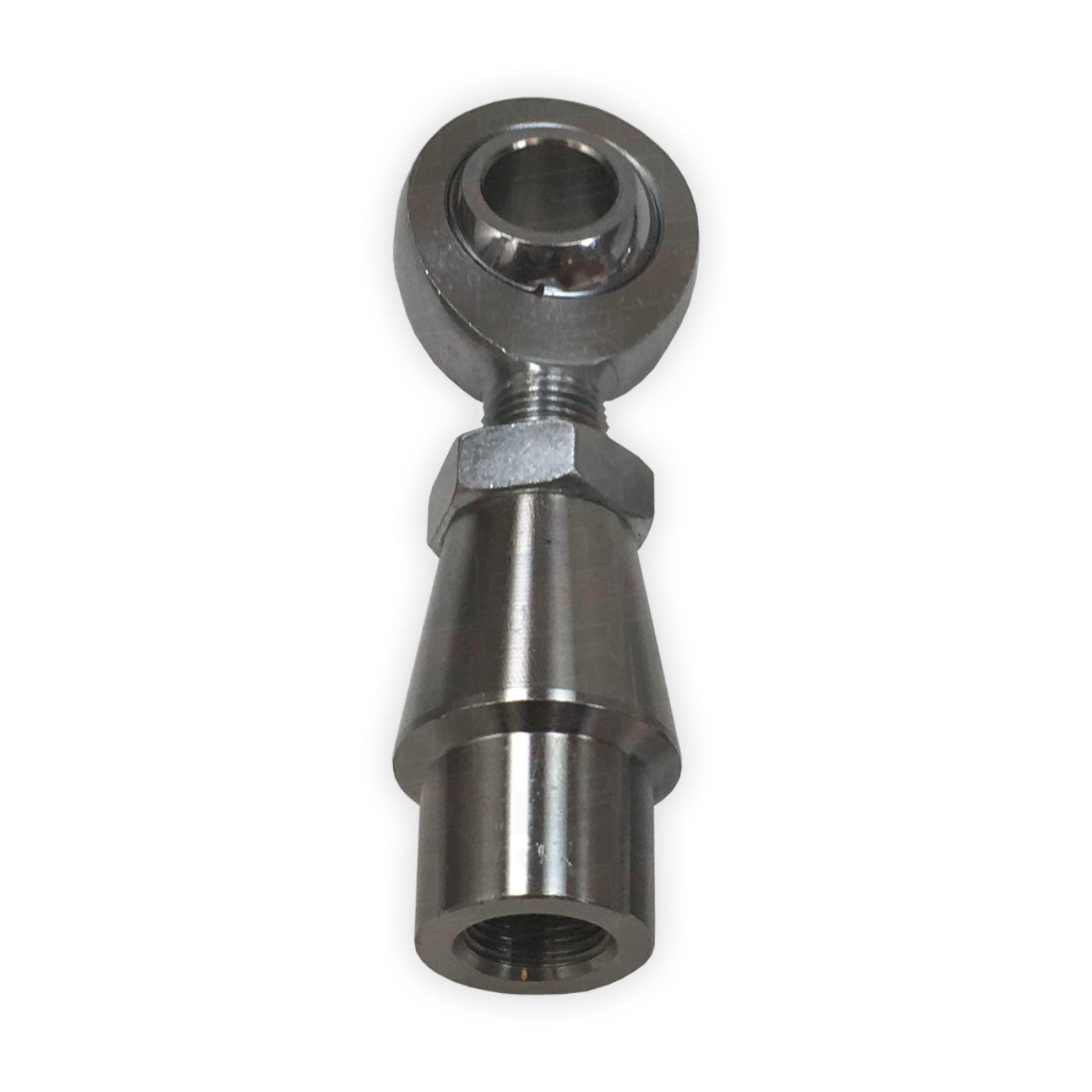

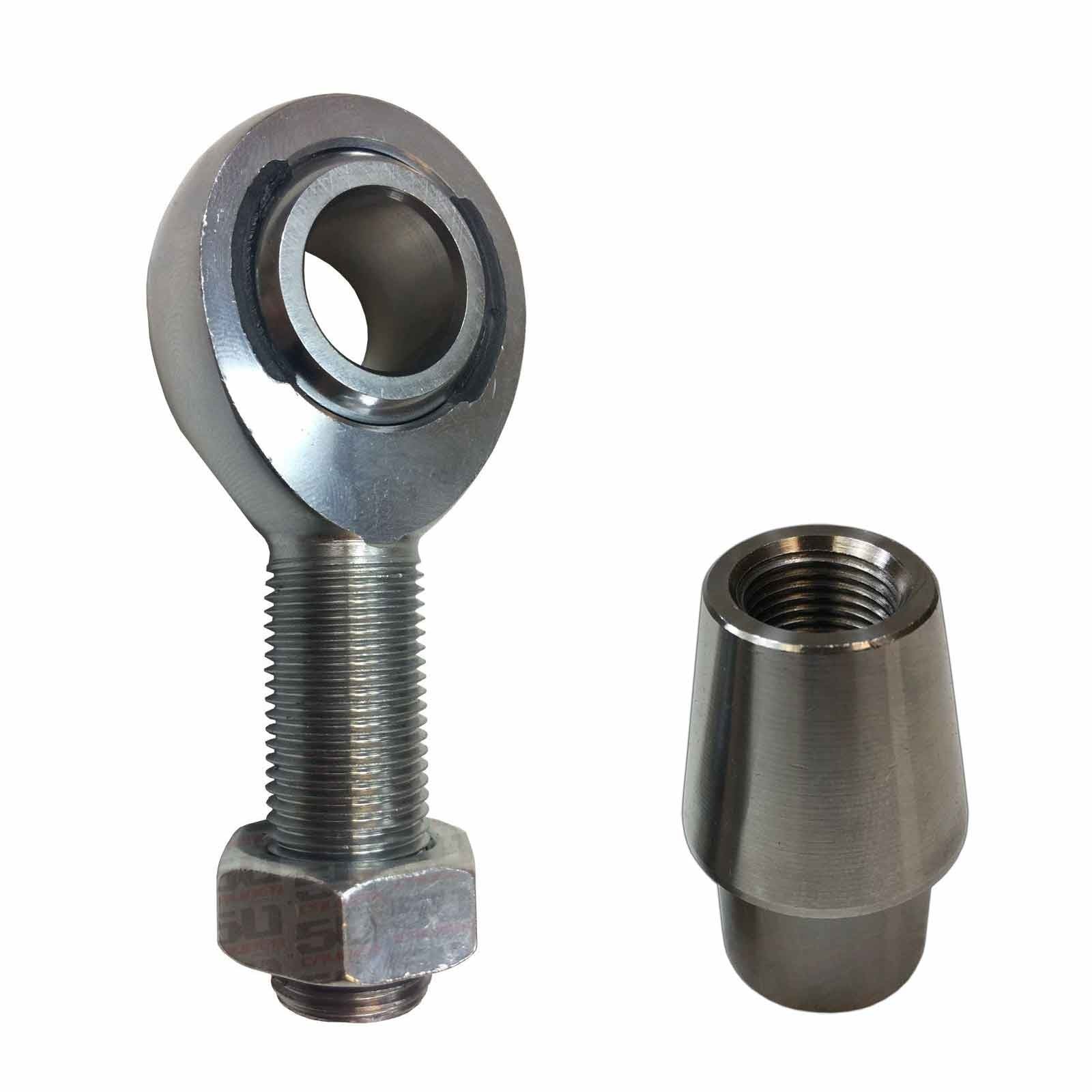

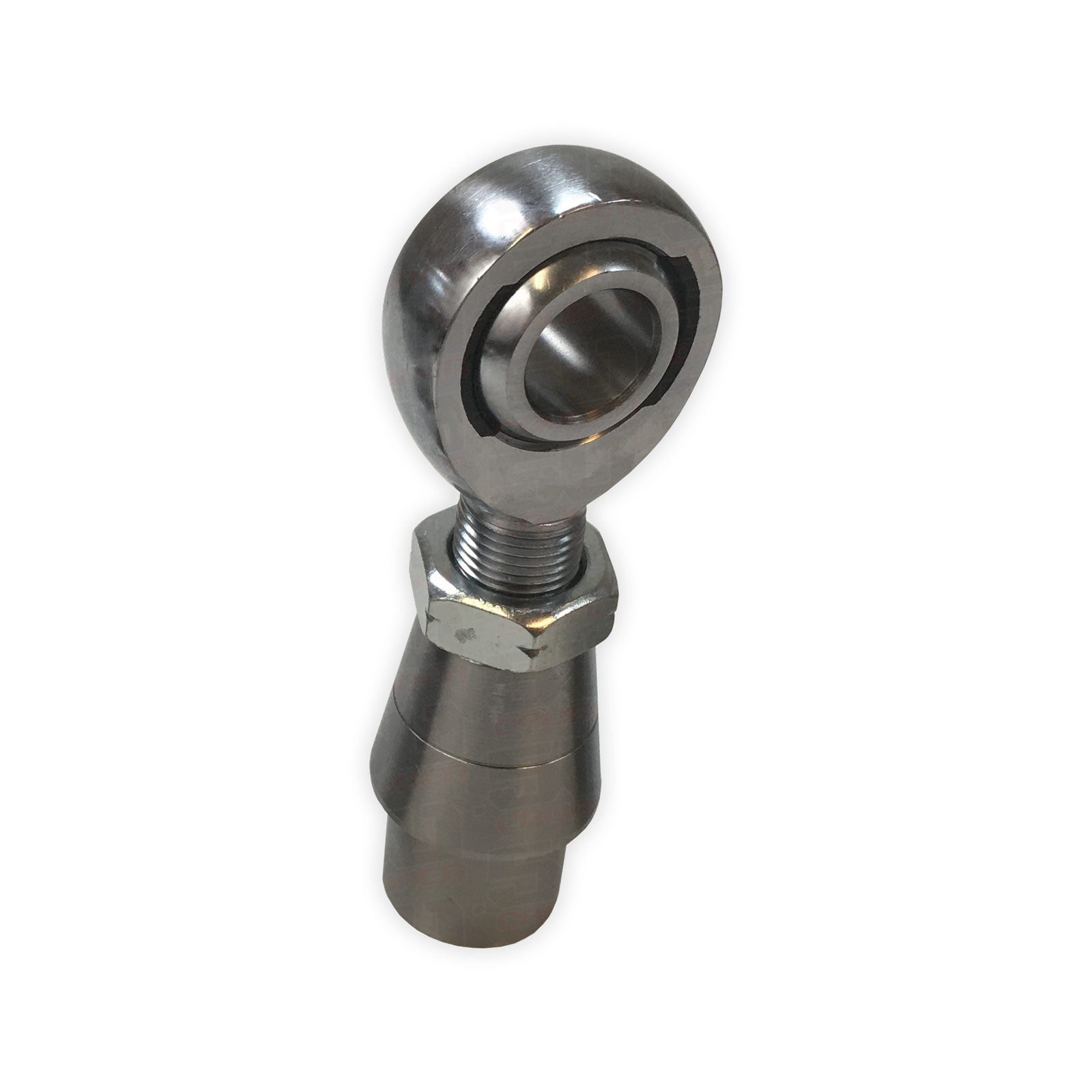

Single rod end kit including a 1/2 x 1/2 heat treated heim joint, jam nut, and a steel weld in bung tube adapter. Designed specifically for 1.0" OD tubing with with wall thicknesses of .095 or .120. Our heim joints are made from 4130 Chromoly steel, with a nylon/teflon (PTFE) liner. The load rating and size make these excellent for building dual carburetor linkage, custom steering, shift and suspension links for go karts, ATVs, racing mowers, and more. Available with or without misalignment spacers.


Specifications:

Heim Joints:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- Static radial load rating: 16,238 lb
- Thread pitch: 1/2" - 20
- Bore: 1/2"
- Ball end diameter: 1.312"
- Socket width: .500"
- Ball width: .625
- Center line length: 2.438"

Bung:
- Thread: Female 1/2"-20
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:
    1.0" OD. x .095 Wall x 0.81" ID
    1.0" OD x .120 Wall x 0.76" ID

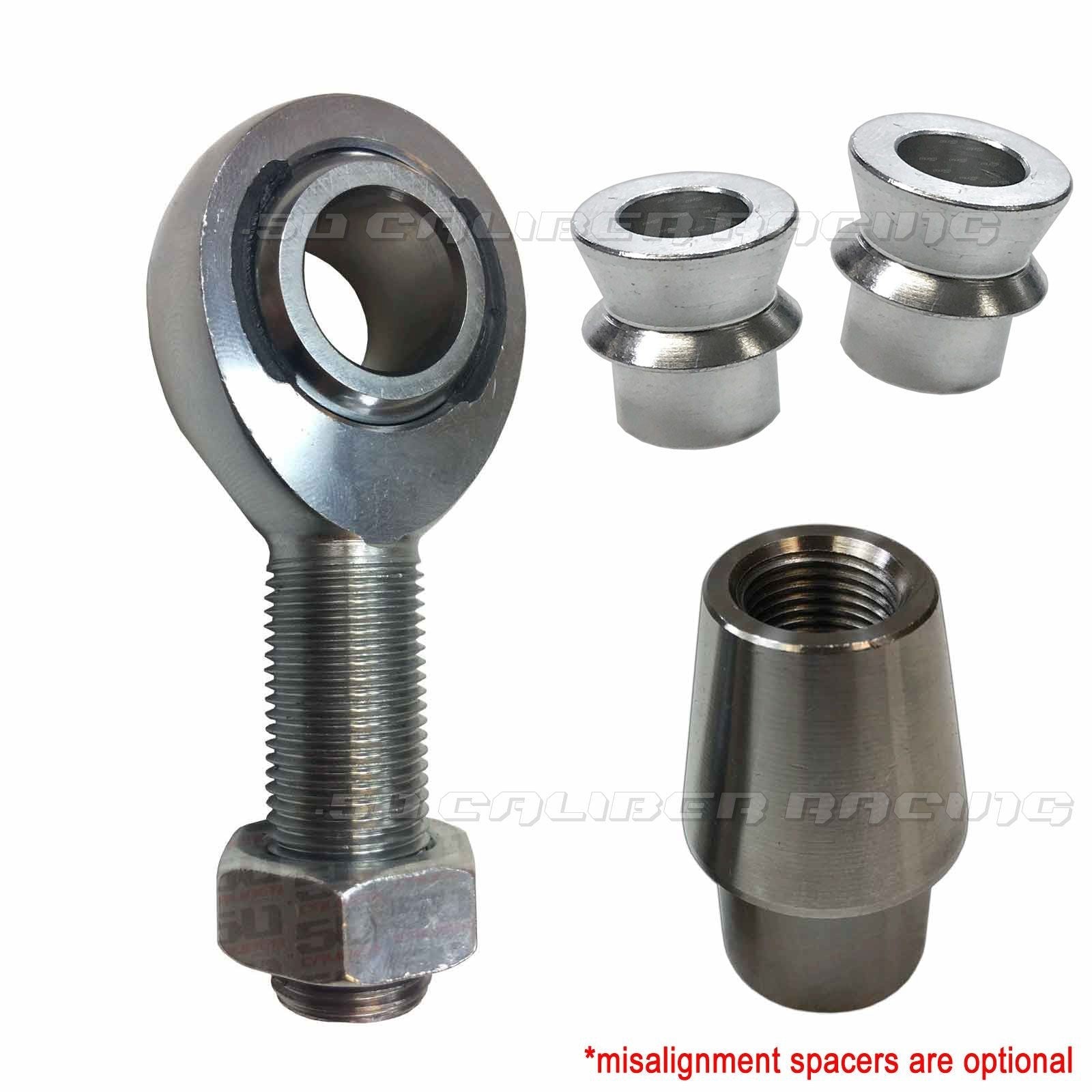

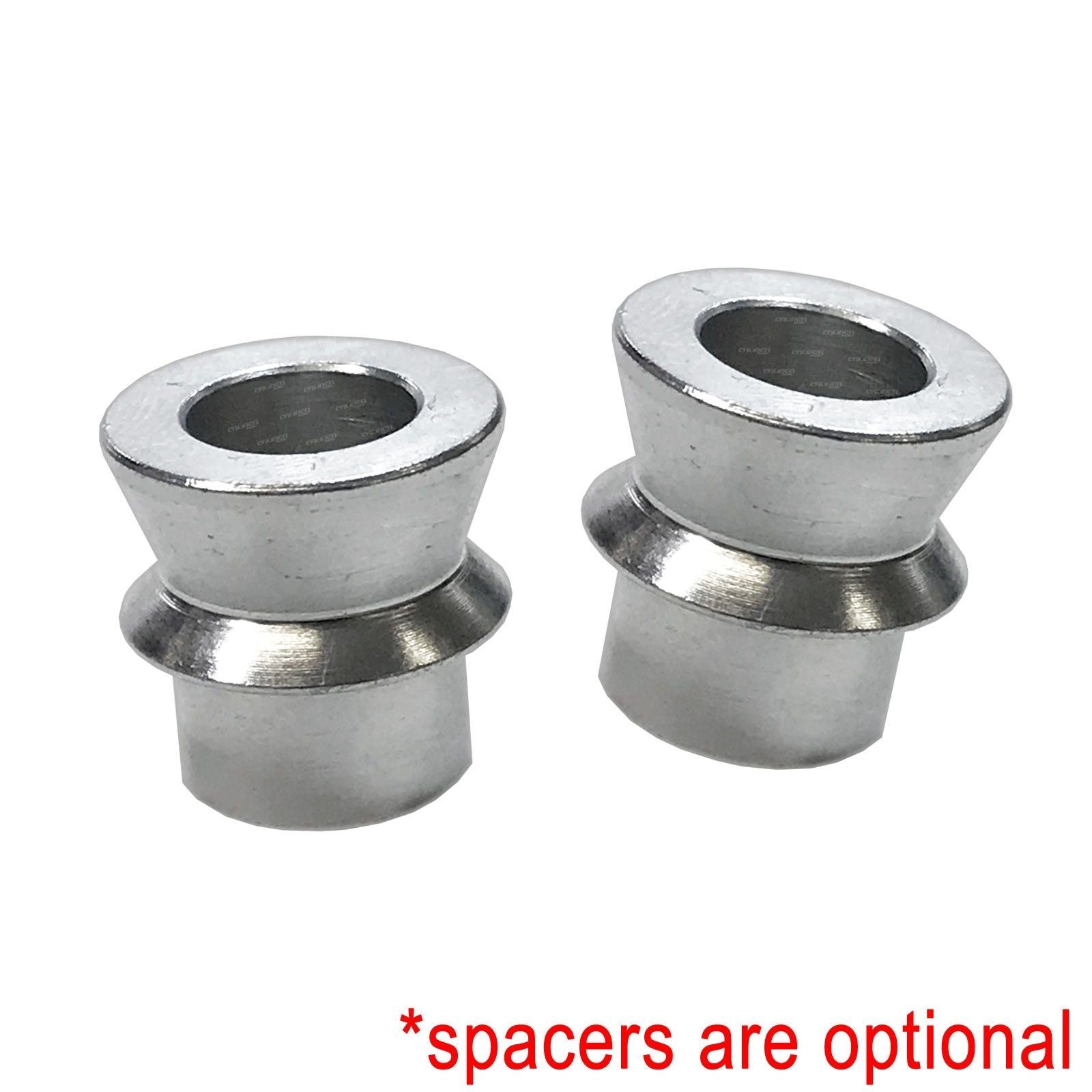

Misalignment Spacers (optional)
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .375" ID x .499" OD x .500" W
- Compatible with 3/8" bolt size


Perfect for fabricating custom linkage on your 4x4, sand rail, hot rod, race car, utv, ATV, go kart and more!

- Carburetor Throttle linkage
- Shift links
- Tie rods
- Drag links
- Control arms
- 4 Link setups
- Panhard bar
- Hi steer
- Custom Mounts
