Single Joint Rod End - 3/4" Chromoly Heim - 1.5" OD Tubing
Pickup available at 32 West Mayflower Avenue
Usually ready in 24 hours

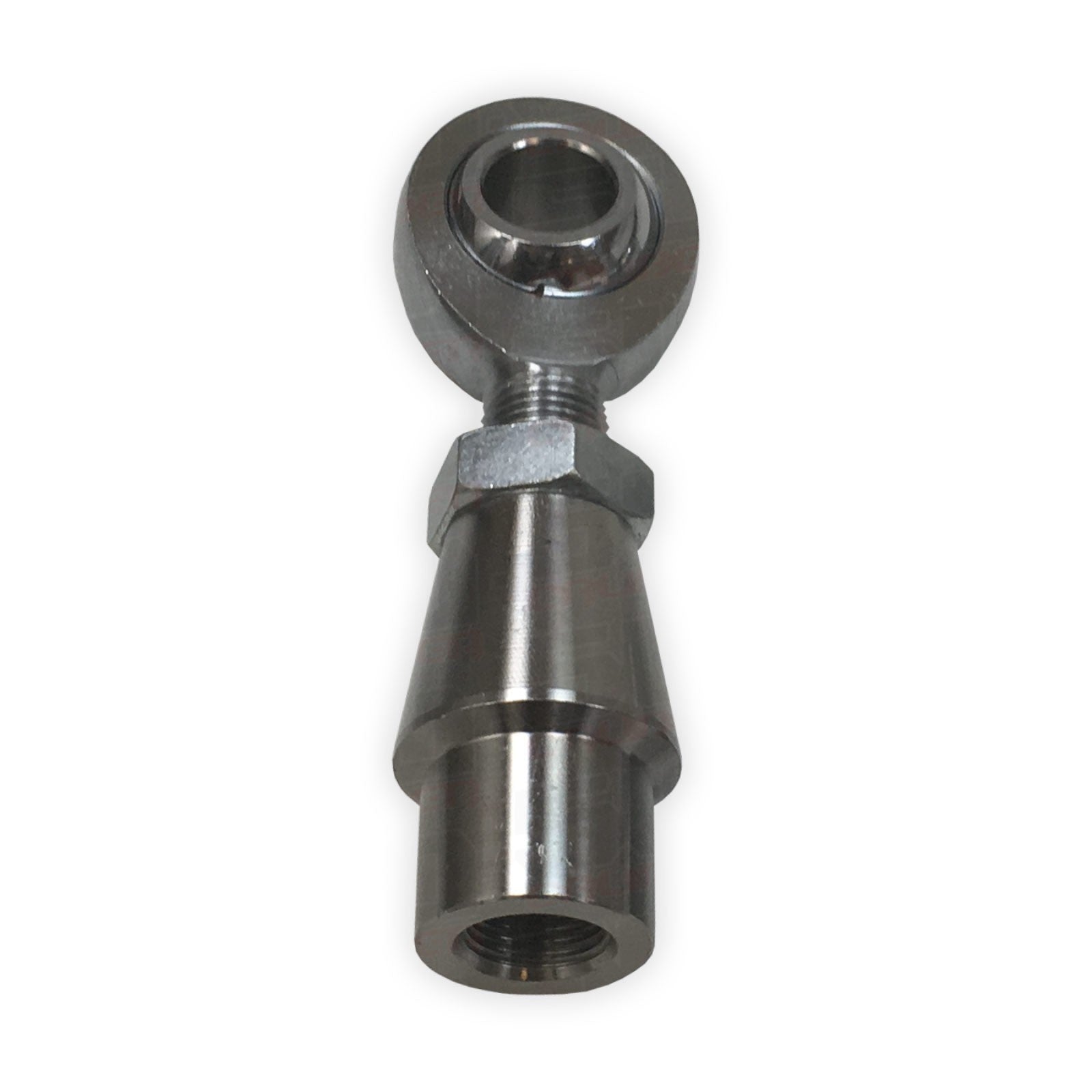

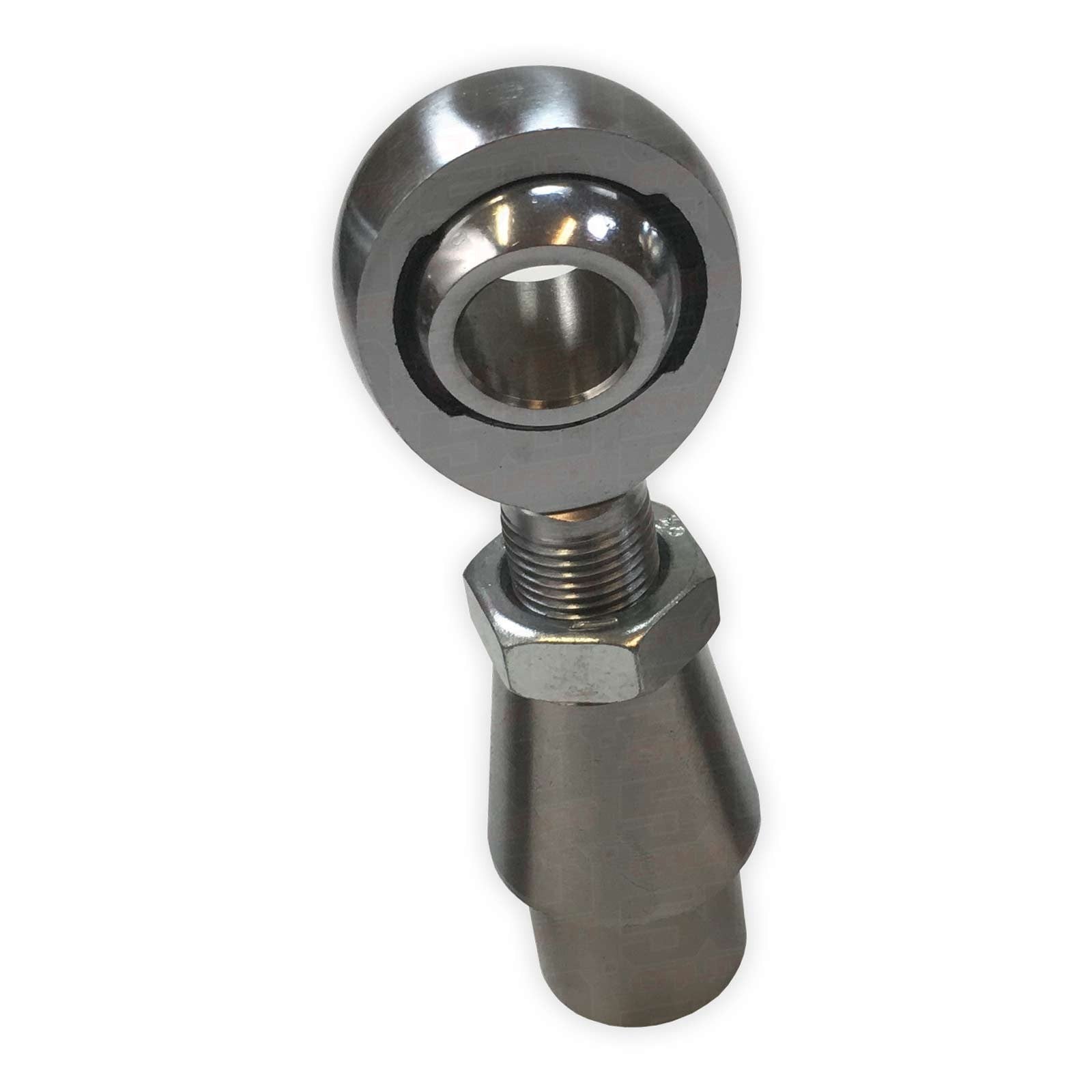

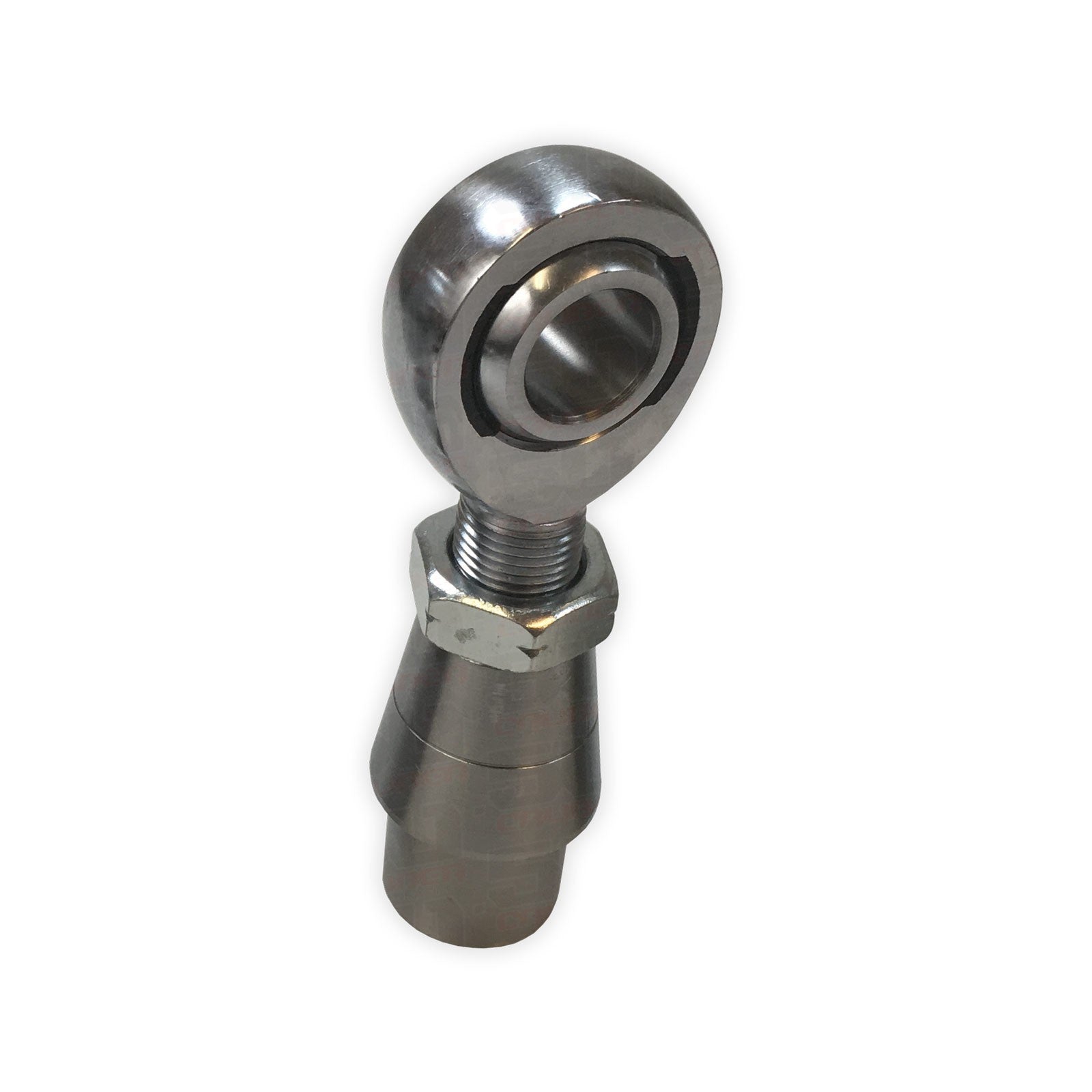

50 Caliber Racing Single Joint Rod End Kit - 3/4-16 Chromoly Heim Joint with Bung for 1.5" OD Tubing
Single rod end kit including a 3/4 x 3/4 heat treated heim joint, jam nut, and a steel weld in bung tube adapter. Designed specifically for 1.5" OD tubing with with wall thicknesses of .095 or .120. Our heim joints are made from 4130 Chromoly steel, with a nylon/teflon (PTFE) liner. The extreme load rating and size make these excellent for building custom steering and suspension links for trucks, 4x4s, rock crawlers, Jeeps, sand rails and more. Available with or without high misalignment spacers.

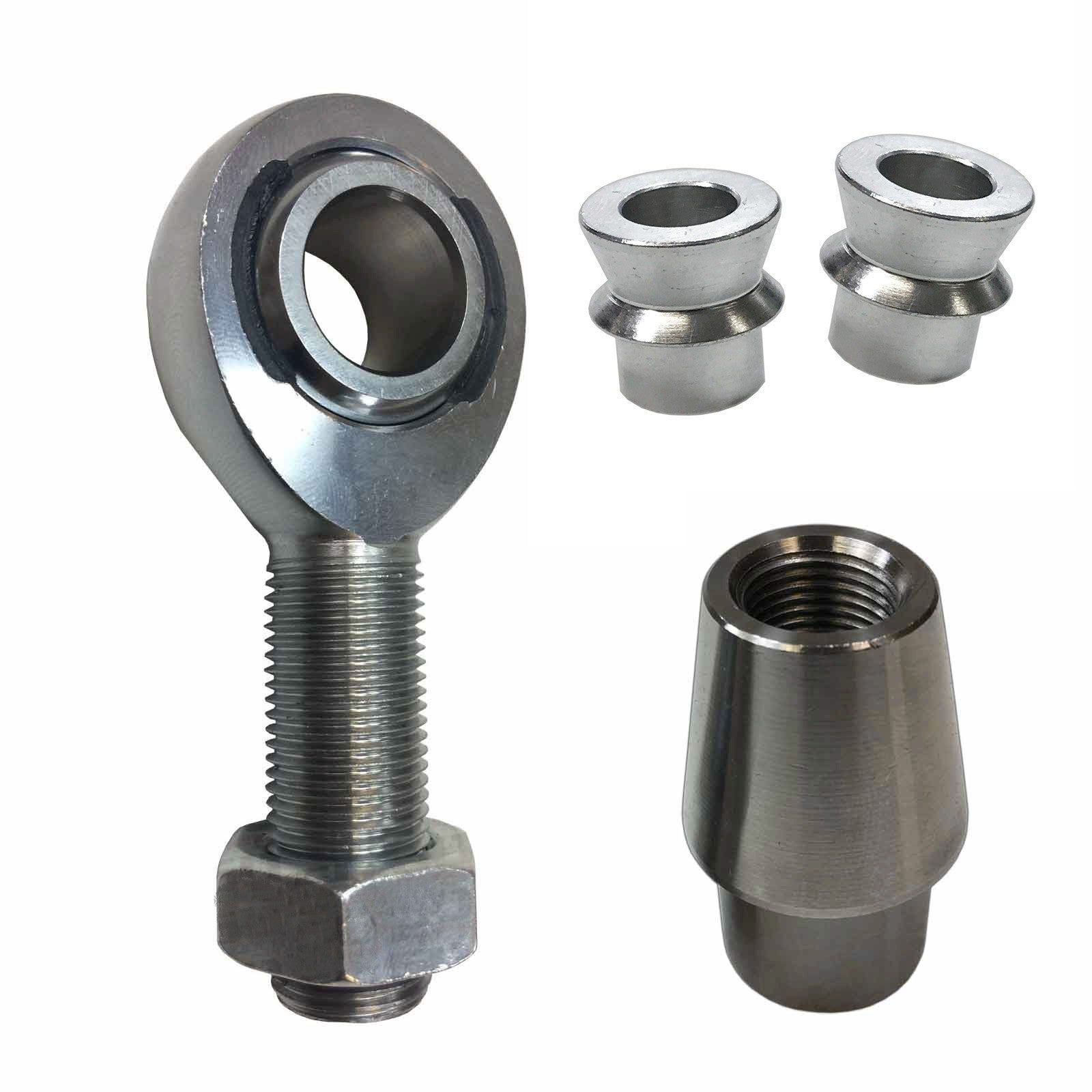

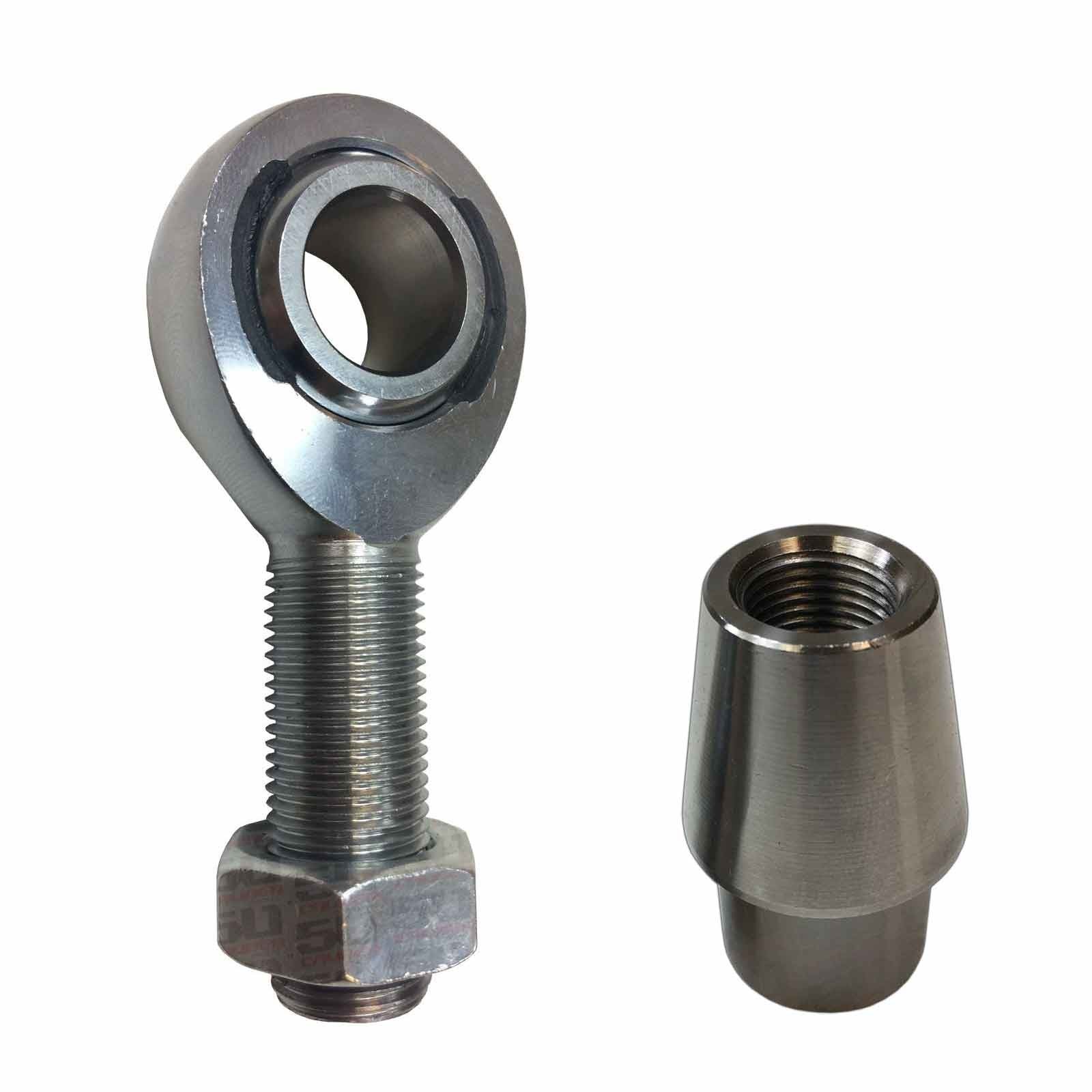

Includes:
- (1) 3/4-16 x 3/4 bore Heim Joint
- (1 Jam Nut
- (1) Weld in Bung (tubing adapter)

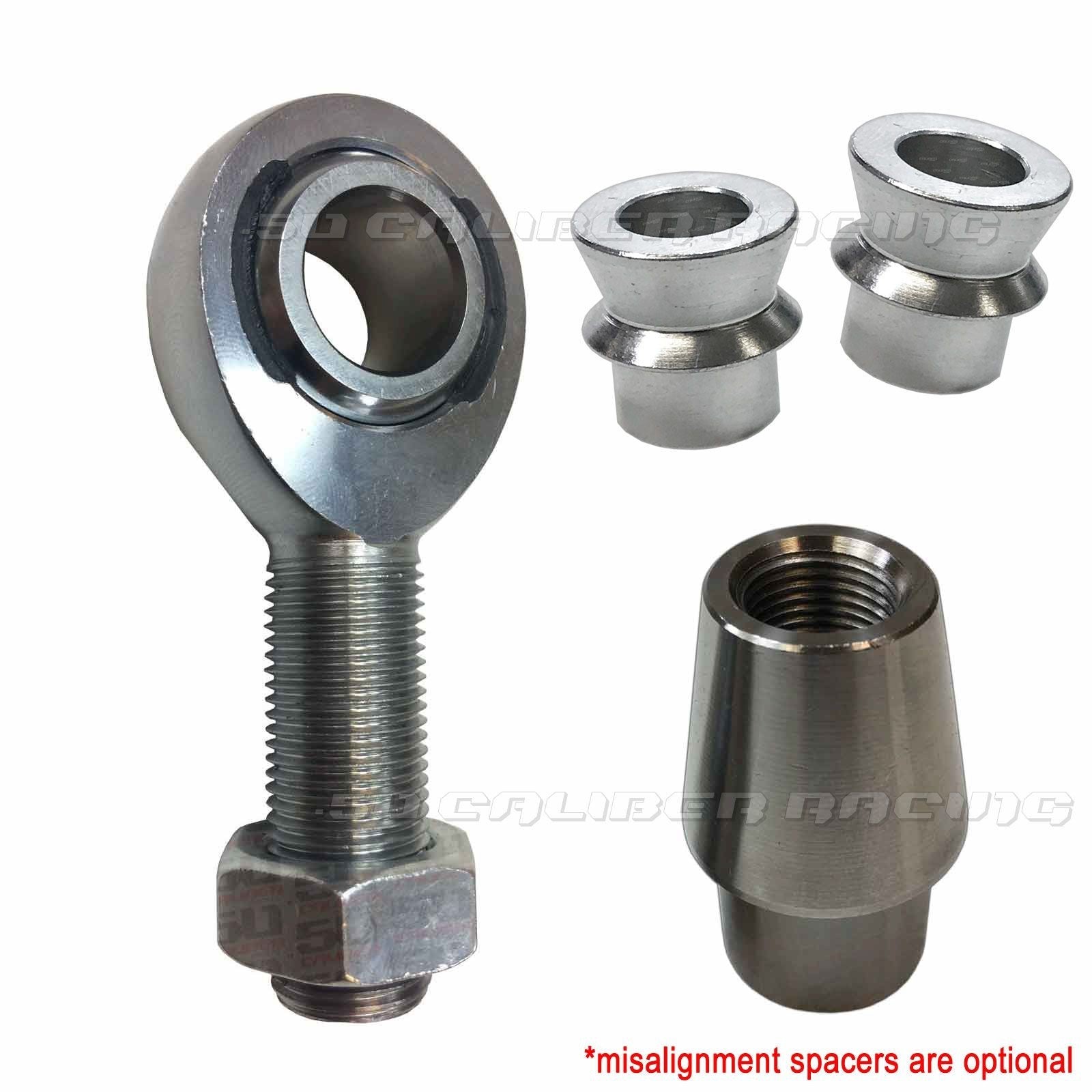

Optional:
- (2) High Misalignment Spacers
Specifications:
Heim Joints:
- 4130 Chromoly Steel, nylon / teflon (PTFE) Liner
- 52100 hardened bearing steel ball
- Static radial load rating: 28,081 lb
- Thread pitch: 3/4"-16
- Bore: 3/4"
- Socket end diameter: 1.750"
- Socket width: .687"
- Ball width: .875"
- Center line length: 2.875"
Bung:
- Thread: Female 3/4"-16
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:

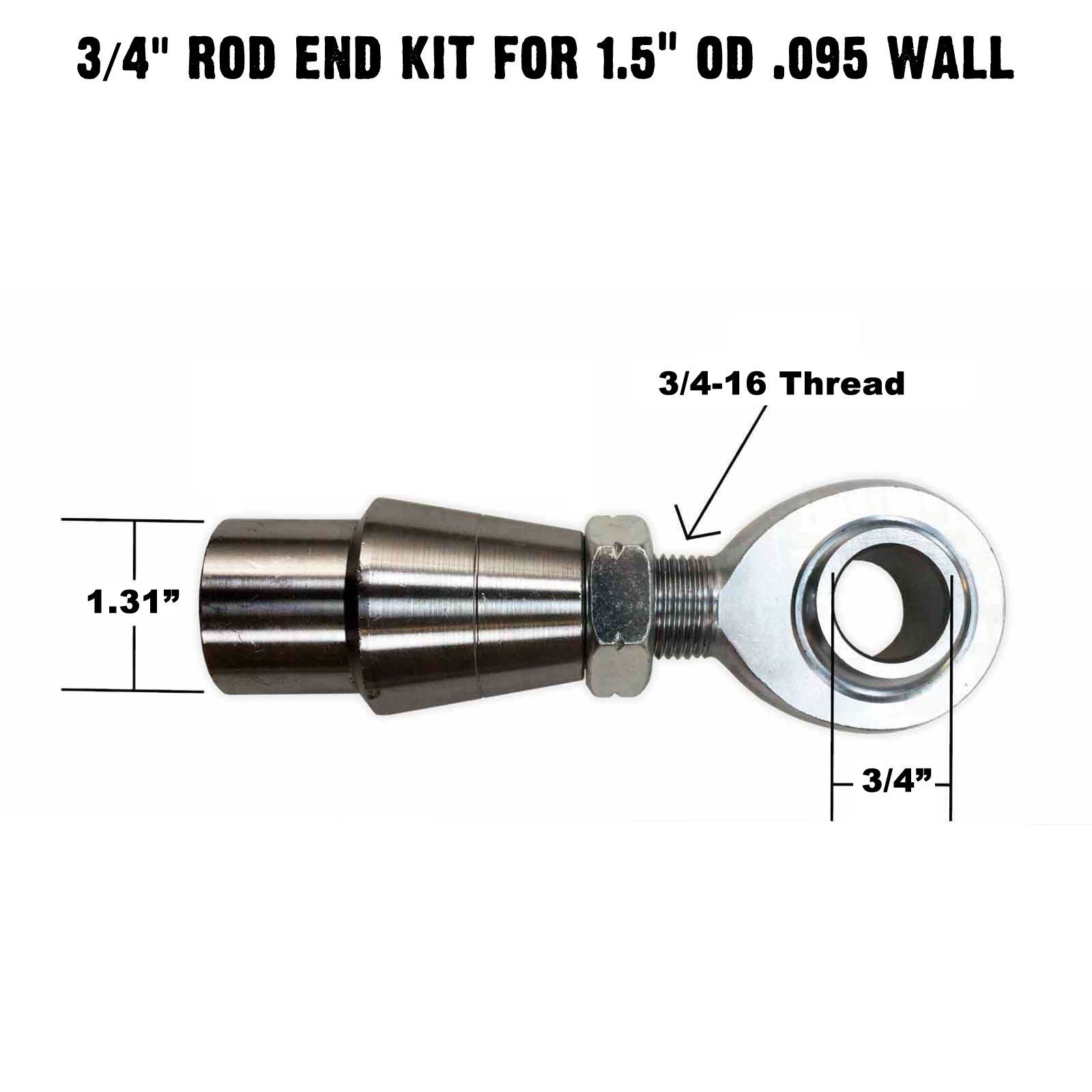

1.5" OD. x .095 Wall x 1.31" ID

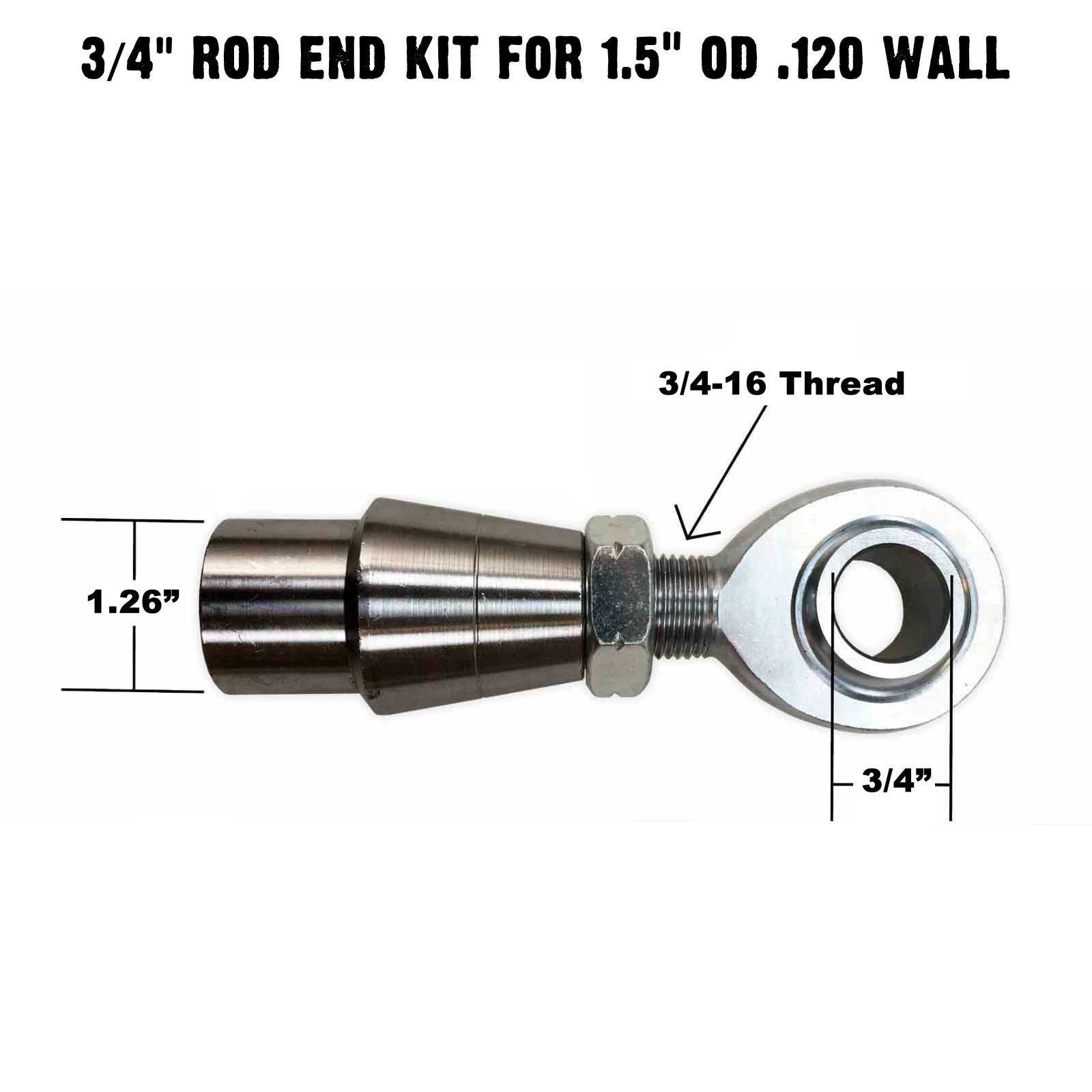

1.5" OD x .120 Wall x 1.26" ID

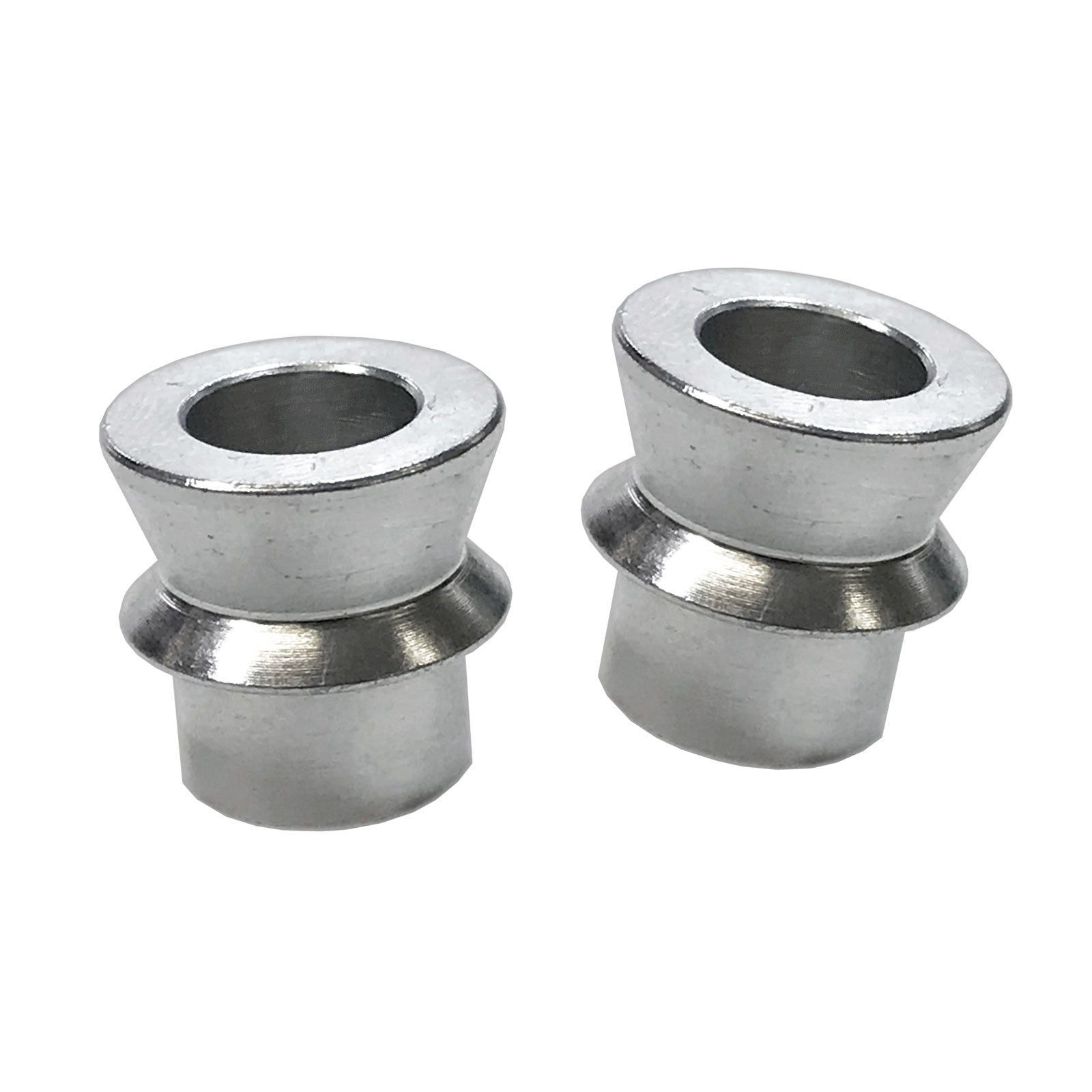

High Misalignment Spacers (optional)
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .625" ID x .743" OD x .922" W
- Compatible with 5/8" bolt size
Perfect for fabricating custom linkage on your 4x4, rock crawler, sand rail, hot rod, race car, Jeep and more!
- 3 Link / 4 Link Radius Arms
- Tie rods
- Drag links
- Control arms
- Panhard bar
- Hi steer
- Custom Mounts
