Rod End Fabrication Kits

Single rod end kit including a 5/8 x 5/8 chromoly heim joint with nylon/teflon liner, jam nut, and chromoly steel weld in bung tube adapter. Designed specifically for 1.25" OD tubing, with wall thickness of .095 or .120. Excellent for building custom sway bar links, tie rods and radius arms for UTVs, and more. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness, thread direction and misalignment spacer options before ordering!

Rod end fabrication kit with 5/8 x 5/8 chromoly heim joint with nylon/teflon liner, jam nut, and chromoly steel weld in bung tube adapter. Designed specifically for 1.25" OD tubing, with wall thickness of .095 or .120. Excellent for building a custom panhard bar for UTVs, cars, trucks & more. Includes LH and RH heim joint, with matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

50 Caliber Racing rod end fabrication kit. 5/8 x 5/8 chromoly heim joints with nylon/teflon liner, jam nuts, and chromoly steel weld in bungs. Designed specifically for 1.25" OD tubing with wall thickness of .095 or .120. Excellent for building custom sway bar end links for UTVs, cars, trucks & more. Includes two LH and RH heim joints, with matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

Complete 4 link fabrication kit with 5/8 x 5/8 chromoly heim joints with nylon/teflon liner, jam nuts, and chromoly steel bungs. Designed for 1.25" OD tubing, with wall thickness of .095 or .120. Excellent for building a custom 4 link setup, radius rods, control arms and more. Includes four LH and four RH heim joints, with matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

Single rod end kit including a 1/2 x 1/2 chromoly heim joint with nylon/teflon liner, jam nut, and chromoly steel weld in bung tube adapter. Designed specifically for 1.0" OD tubing, with wall thickness of .095 or .120. Excellent for building custom linkage, tie rods and more for ATVs, Go Karts, Racing Lawn Mowers and more. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness, thread direction and misalignment spacer options before ordering!

Rod end fabrication kit with 1/2 x 1/2 chromoly heim joint with nylon/teflon liner, jam nut, and chromoly steel weld in bung tube adapter. Designed specifically for 1.0" OD tubing, with wall thickness of .095 or .120. Excellent for building a custom panhard bar for UTVs, cars, trucks & more. Includes LH and RH heim joint, with matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

Rod end fabrication kit. 1/2 x 1/2 chromoly heim joints with nylon/teflon liner, jam nuts, and chromoly steel weld in bungs. Designed specifically for 1" OD tubing with wall thickness of .095 or .120. Excellent for building custom sway bar end links for UTVs, cars, trucks & more. Includes two LH and RH heim joints, with matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

Complete 4 link fabrication kit with 1/2 x 1/2 chromoly heim joints with nylon/teflon liner, jam nuts, and chromoly steel bungs. Designed specifically for 1" OD tubing, with wall thickness of .095 or .120. Excellent for building a custom 4 link setup, radius rods, control arms and more. Includes four LH and four RH heim joints, with matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

Single rod end kit including a 3/4 x 3/4 chromoly heim joint with nylon/teflon (PTFE) liner, jam nut, and chromoly steel weld in bung tube adapter. Designed specifically for 1.5" OD tubing, with wall thickness of .095 or .120. Excellent for building custom linkage, tie rods and more for cars, trucks, 4x4, sand rails, Jeeps and more. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness, thread direction and misalignment spacer options before ordering!

Rod end fabrication kit with 3/4 x 3/4 chromoly heim joint with nylon/teflon liner, jam nut, and chromoly steel weld in bung tube adapter. Designed specifically for 1.5" OD tubing, with wall thickness of .095 or .120. Excellent for building a custom panhard bar for cars, trucks, 4x4s & more. Includes heim joints, jam nuts and matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

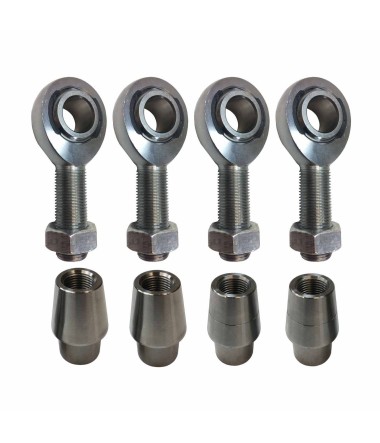

50 Caliber Racing 4 link rod end fabrication kit with 3/4 x 3/4 chromoly heim joints with nylon/teflon liner, jam nuts, and chromoly steel weld in bung tube adapters. Designed specifically for 1.5" OD tubing, with wall thickness of .095 or .120. Includes four LH, four RH heim joints, jam nuts, and matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

Single rod end kit including a 3/4 x 3/4 chromoly heim joint with nylon/Teflon (PTFE) liner, jam nut, and chromoly steel weld in bung tube adapter. Designed specifically for 1.75" OD tubing, with wall thickness of .095 or .120. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness, thread direction and misalignment spacer options before ordering!

50 Caliber Racing rod end fabrication kit with 3/4 x 3/4 chromoly / PTFE liner heim joints, jam nuts, and weld in bung tube adapters. Designed specifically for 1.75" OD tubing, with wall thickness of .095 or .120. Includes Left and Right hand thread heim joints, with matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

50 Caliber Racing rod end fabrication kit featuring 3/4" x 3/4" chromoly / PTFE liner heim joints. Fits 1.75" OD tubing, with wall thickness of .095 or .120. Includes two Left and two Right hand thread heim joints, with matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

50 Caliber Racing rod end fabrication kit featuring 3/4" x 3/4" chromoly / PTFE liner heim joints. Fits 1.75" OD tubing, with wall thickness of .095 or .120. Includes four LH, four RH heim joints, jam nuts, and matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

Single joint rod end fabrication kit featuring 7/8" thread x 7/8" bore chromoly / PTFE heim joints. Fits 1.5" OD tubing, with wall thickness of .120 or .250. Includes one heim joint, jam nut, and matching bung. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness, thread direction and misalignment spacer options before ordering!

Rod end fabrication kit featuring 7/8" thread x 7/8" bore chromoly / PTFE heim joints. Fits 1.5" OD tubing, with wall thickness of .120 or .250. Excellent for building a custom panhard bar for cars, trucks, 4x4s & more. Includes heim joints, jam nuts and matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

Rod end fabrication kit featuring 7/8 x 7/8 chromoly heim joints with nylon/teflon liner, jam nuts, and chromoly steel weld in bung tube adapters. Designed specifically for 1.5" OD tubing, with wall thickness of .120 or .250. Includes two LH and two RH heim joints, with matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

Rod end fabrication kit featuring 7/8 x 7/8 chromoly heim joints with nylon/teflon liner, jam nuts, and chromoly steel weld in bung tube adapters. Designed specifically for 1.5" OD tubing, with wall thickness of .120 or .250. Includes four LH, four RH heim joints, jam nuts, and matching bungs. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness and misalignment spacer options before ordering!

Single joint rod end fabrication kit featuring 7/8" thread x 7/8" bore chromoly / PTFE heim joints. Fits 1.75" OD tubing, with wall thickness of .120 or .250. Excellent for building custom suspension links for trucks, sand rails, rock crawlers & more. Includes one heim joint, jam nut, and matching bung. Available with or without high misalignment spacers.

Be sure to choose tubing wall thickness, thread direction and misalignment spacer options before ordering!
